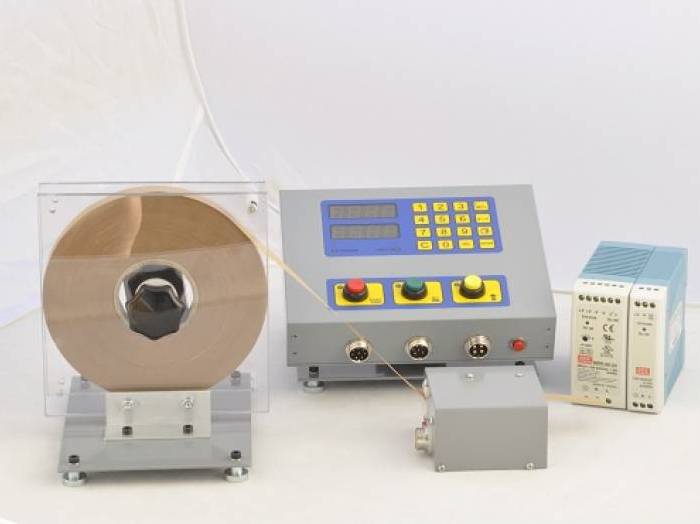

ATI-15 operator interface
 Maximum package : up-to 1 000 000
 Range of package meter : 9 999 999
 Accurate and reliable counting of preset packages
 Correction of counting when removing sheets to control – demountable sheets button
 Easy setting of the keyboard
 Programmable delay in cutting
 Programmable length of tape
 Programmable packet size
 Easy configuration of the device:mode – active or passive START/STOP
 mode – correction of sheets removed for inspection by pressing the button or setting
 mode – total count or modulo
 mode – single or double step cutting
 mode – fire delay
 Automatic insert synchronisation
 Easy to read packet size setting display
 Easy to read package meter display
 Programmatic limit of the tape length up to 50 cm
 Preserving the settings memory and the counted sheets in the case of a power breakdown
 Dimensions 190 x 155 x 40 mm

Features and characteristics of the HTI-15 head
 Operation with machines up to 20000 sheet per hour
 Mounting the head inserting the tape on:
 Side plane
 Swivel arm
 Stiffening tape shaping during offset
 Self-cleaning sliding roller
 Also works with waxed paper
 Dimensions 75 x 75 x 45 mm

Characteristics of the CTI-15 tape cartridge
 Marking tape width -14 mm
 External diameter of tape – 150 mm
 Internal diameter of tape – 50 mm
 Capacity of tape roll – 200 m – 2000 separators 10 cm long
 Brake preventing uncontrolled tape unreel
