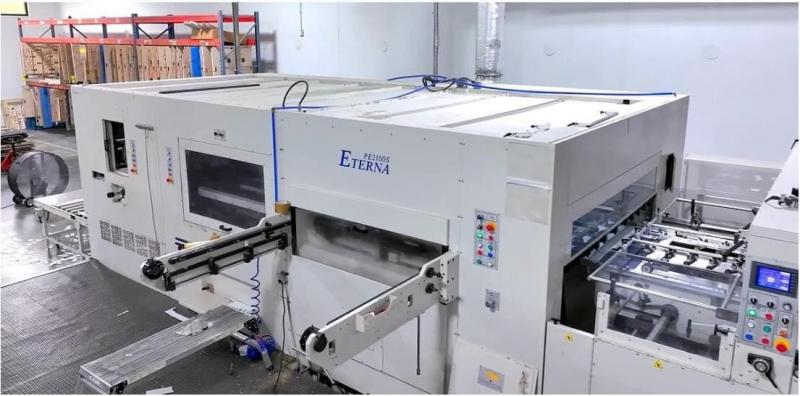

Automatic Flatbed Die Cutter with Stripping and Edge feeder

82 large-format automatic flatbed die-cutting creasing machine with servo-drive lead

Maximums format: 82.67 x 51.18 2100 x 1300mm

Minimums sheet format: 33.46 x 23.63 850 x 600mm

Maximum Speed: 4,5000 sheets/hour

Maximum Cutting Pressure: 500 tons

Stock Range: Corrugated Board - E, C, B, A, AB flute and other flutes up to 11mm

Plastic Corrugated Board - 1 - 11mm

Lead Edge Feeder:

Dynamic torque servo motor-driven differential speed belt lead edge feeder with

extended feeding table and side alignment

Top quality feeding belt for handling of warped corrugated board

Pneumatic side push jogger left and right side

Front Lay Alignment Guide:

Sheet arrives at front lay with servo motor controlled slow down action for precise

registration

Side alignment system to ensure the accuracy of side register

Die Cutting Section:

7-piece gripper bar with 24 spikes per piece

Safety door and die chase safety locking system to ensure safe operation

Complete lost sheet control throughout the entire machine

Centerline system compatible to Centerline II for quick change over and short setup

time

Air cushion underneath die cutting plate for easy cutting plate floating in and out

Stripping Section:

Centerline system with quick lock pins on upper frame

Centerline system compatible to Centerline II for quick stripping die setup

Motorized upper frame suspending hoister up to 500mm

Lead edge removal system to remove gripper margin completely

Delivery Section:

Escalator delivery with non-stop air cylinder to protect the sheets from scratches

Non-stop batch counter bundle delivery to ensure continuous productivity and

operation efficiency.
