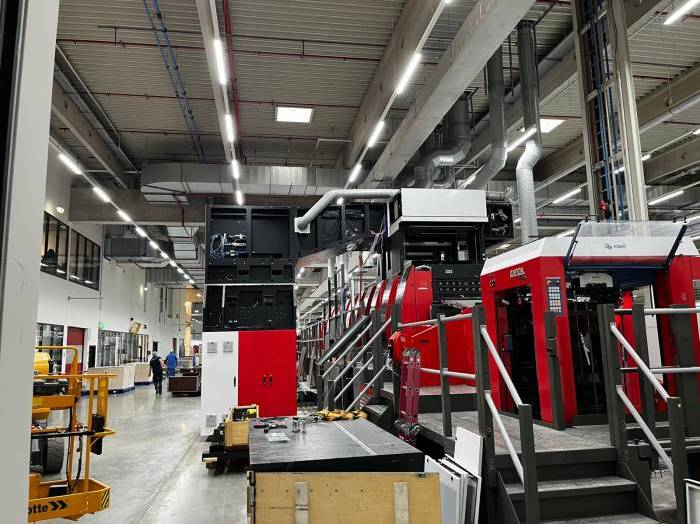

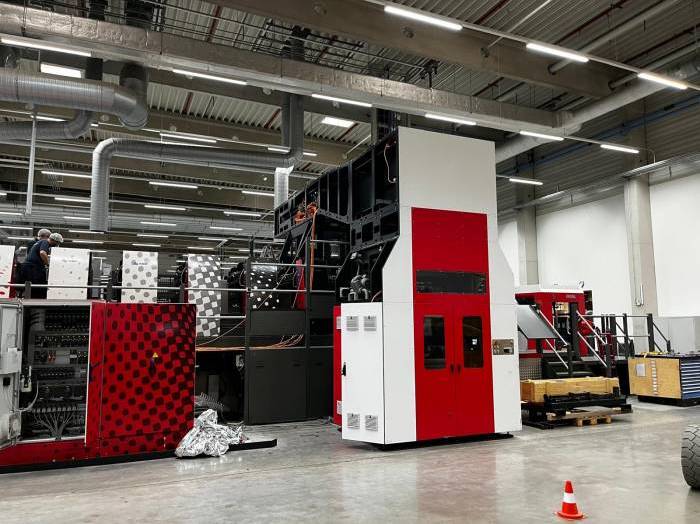

ColdFoil attachment for printing presses

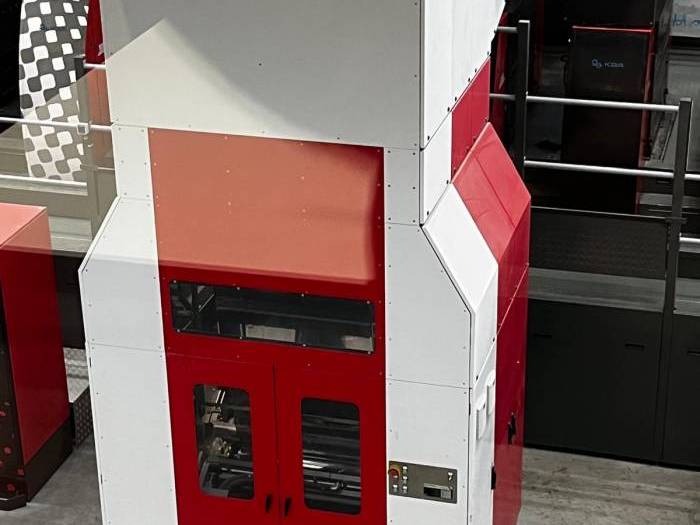

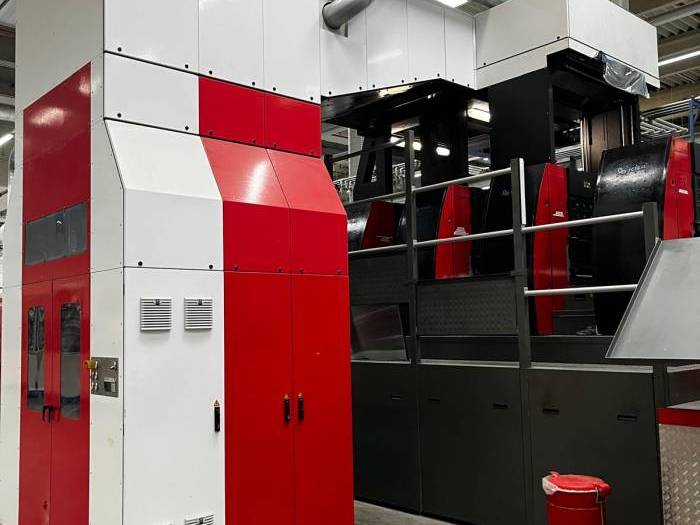

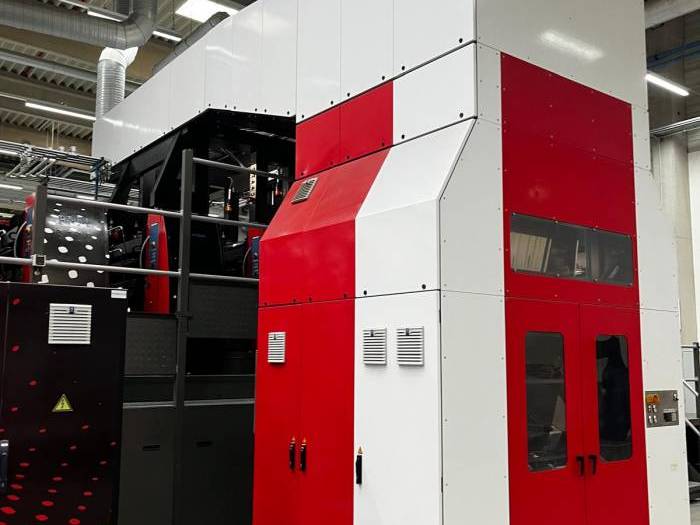

Foil Loading Station (FLS) STANDARD
 In this unit, the operator can prepare, during production, the next job.
 Changing the reels takes place at ground level, which ensures a very easy and safe
operation
 Special dancer roller for levelling the unbalance of the turning foil reel during the
production with high speed and for a perfect web tension
 Electrical roll manipulator for easy loading and unloading the foil reels
 Vacuum bar to prepare the new foil reel for the automatic glue cycles
 During the automatic glue cycles the paper infeed of the press will be interrupted for
maximum 1 minute.
Cross Section (CS) STANDARD
 In the cross section the angle bars and the Web Splitting knives are integrated
 The angle bars can be moved laterally to position the sliced webs at any location
on the printed sheet.
 Motorized foil infeed system from Foil Loading Station to the Cross Section
Direct Foil Drive (DFD) STANDARD
 With the DFD (Direct Foil Drive) rolls the foil web speed is controlled by servo
motors – these motors are controlled by an encoder integrated into the printing
press to ensure a very precise synchronization of the foil web with the speed of the
printing press
 Electronically adjustable web tension
Web Splitting (WS) STANDARD WITH 1 KNIFE
 With this technology foil consumption can be reduced by 65%
 The foil web can be split up to a maximum of 5 webs. The width of each web is
adjustable. The total width of the foil core is the total of all sliced webs.
1 knife is delivered standard. Option up to 4 knives
 Automatic foil changeover still available
Multiple Foil Use (MFU®) STANDARD
 MFU® is redirecting the cold foil web back into the printing nip after transferring
parts of the metallic layer for the first time. With this technology a foil web can be
used up to 3 times to generate optimal utilization of the cold foil reel.
 The use of MFU® can reduce the cold-foil consumption up to 85 %
 2 MFU® decks with horizontally movable guiding rods for lateral adjustment of the
foil webs position
 MFU® Decks can be moved in vertical direction for circumferential adjustment of
the foil web position
 Automatic foil changeover still available
Foil Waste Cutter (FWC) STANDARD
 After the printing process, the used cold foil is exhausted to a pipe system and
shred to small pieces
 The shred foil is exhausted from the process through a pipe system to the material
separator
 No rewound cold-foil cores to dispose
VIFOP® – Vinfoil Intelligent Foil Optimizing Program - STANDARD
With this on-line software, foil consumption is calculated by just uploading the pdf with the
layer of the cold foil.
Very useful for management and prepress.
With this data the Vinfoil Infigo® SF110 is automatically set
Specifications Vinfoil Infigo® SF110GF
Power supply / air supply
 Power voltage 400 V / 50 Hz
 Power requirement 40kVA
 Fuse protection at 400 V 3 x 63A
 Air supply 8 bar
 Air flow rate (including MFU®) 1.440 ltr/min
 For each extra WS system 360 ltr/min
Compressed air quality according to ISO 8573/1
 Filtration on solid parts class 4
 Filtration on oil class 4
 Dry air class 4
General specifications
 Total length (foil loading side) 2500 mm
 Total width 1850 mm
 Total height 4000-4600 mm
(depending on type machine and elevation height)
 Total net weight 7000 kg
Advice for ceiling height
The minimum space above the printing units of the press required for the installation of the
Vinfoil Infigo® SF110GF must not underrun 2500 mm.
Specifications cold foil reels
 Maximum foil roll diameter 450 mm
 Foil core diameter 6“
 Maximum foil width in loading station 1100 mm
 Minimum foil width in loading station 300 mm
 Minimum foil width after the cutting device (optional) 100 mm
Specification reel cores
 Basic material Laminated paper core
 Core winding geometry Spiral
 Min. core thickness 13 mm
 Moisture content according to DIN 11093--3 at 130°C 8%
 Radial pressure resistance Up to 340 N/cm
Speeds
 Max. speed 18.000 sheets/hour
(depending on press specs and settings,
paper/carton, foil, adhesive and blankets)
 Maximal Quick Start speed of the printing machine
 at Web Splitting 3.000 sh/hr
 at MFU® 3.000 sh/hr
 at full web 5.000 sh/hr
Specifications air filter system
 Filter system (L x W x H) 1085x1160x3232 mm
 Power voltage 400 V / 50 Hz
 Total power supply 7,5 kW
 Air supply 8 bar
 Air consumption 3,5 l/min
 Maximum tube length between Vinfoil and the filter system 25 m
 Total net weight filter system 1500 kg
Material Separator with frame
 Material separator with frame (L x W x H) 2350x1200x3955 mm
 Power voltage 400 V / 50 Hz
 Total power supply 1,5 kW
 Weight 1000 kg
