TECHNICAL SPECIFICATIONS

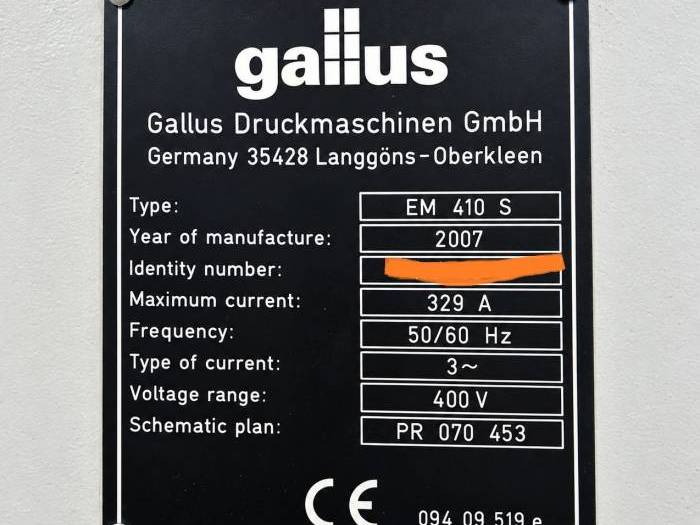

• Year: 2007
• Model: Gallus EM 410 S-10
• Serial No.: XXX-XXX
• Web Width: 410 mm
• Printing Speed: 150 m/min
• Repeat Range: 72–208 teeth
• Substrate Thickness: 0.01–0.45 mm
• Working Hours: 20,050.6
• Servo-driven press with closed-loop servo-controlled tension control

PRINTING AND FINISHING
• 10 flexographic printing stations
• 1 rotary screen printing station
• 14 anilox rollers
• Label-on-label attachment
• Movable cold foil unit
• 2 die-cutting stations
• Matrix waste rewinder

UNWINDING AND WEB HANDLING
• Martin Automatic butt splicer
Model: MBSF 05-16-40
Serial No.: 17237
• 40-inch unwinders
• Hydraulic roll lift
• 2 BST web aligners
• 2 Arcotec corona treaters
• Double-sided web cleaner

DRYING AND COOLING
• 10 GEW Rhino E2C UV lamps
• 10 hot-air drying units
• 3 hot-air generators
• 10 chilled rollers
• Hyfra water chiller

CONTROLS AND INSPECTION
• Sensotec automatic registration system
• HMI touchscreen operator control panel
• BST web video system
• AVT inline defect detection system
Model: Hellios S-445
Installed in 2016

INCLUDED ACCESSORIES
• J M Heaford plate mounter
• 8 sets of print cylinder sleeves
• 6 magnetic cylinders
• 2 trolleys for printing stations
• All books and manuals

Condition: Excellent
Location: USA
Available: November 2026
