<strong>Ref:11151 . 2020 Horizon HT-300 iCE Trimmer</strong>
LIKE NEW - ONLY 980 BOOKS TRIMMED!
For fully automatic three knife trimming of piled or single bound books off-line.
Quick, menu guided set-up, LCD on-screen instructions for lower skilled operation.
Designed for either offline operation or inline connection to Horizon perfect binders.
<strong>Comprising:</strong>

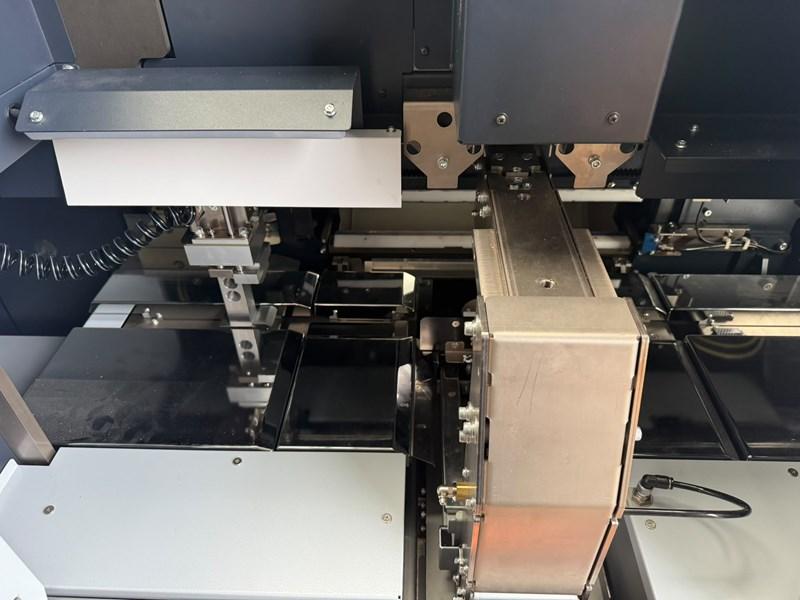

Stacker infeed to integral register table

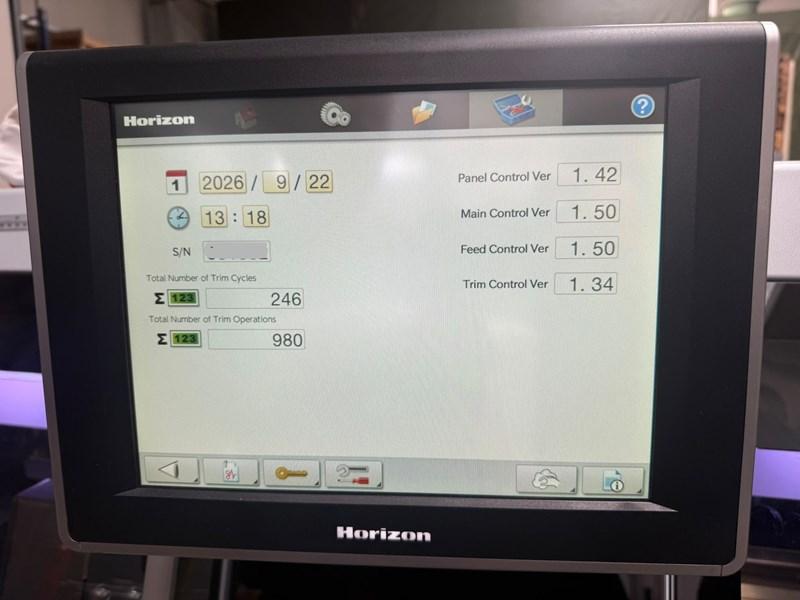

Digital control panel with LCD monitor for size setting and fault indication
Hydraulic clamping keeps the book/pile firmly in position
Diagonal cutting action for a precise finish of all three sides
Corner trimming capability
Including knives, tools and accessories.
<strong>Specification:</strong>
Maximum speed: 300 cycles/hour
Stack production: Up to approx. 590 books/hour depending on feed/configuration
Maximum untrimmed size: Up to 350 × 350 mm, depending on table/configuration
Minimum untrimmed size: Down to 152 × 107 mm with A6 Table K
Maximum trim width: 99.9 mm
Minimum trim width: 2 mm 0 mm/no cut can also be selected
Book/stack thickness: 1–51 mm
Pressing force: 1–7 kN, servo controlled
Machine dimensions : Approx. 2,406 × 1,280 × 1,550 mm W × D × H
Operation: Fully automatic setup
Workflow: iCE LiNK / JDF compatible
