8 UV flexographic printing units
Adhesive-side printing Delam/Relam capability on two printing stations
CS/Multiweb lamination unit
The ability to replace one flexographic section with a screen printing unit
Full Cylinder hot stamping unit
Corona system
Teknek web cleaning system
Sensotec automatic register control
BST Powerscope video inspection system
GapMaster die-cutting unit
Matrix rewinder
UV IST system
Inserting - web insertion capability
Unwinding unit BG 01 Unwinding unit with pneumatic elevator Web slitting table with pneumatic pressure Dancer system Electric edge guidance with ultrasonic sensor Optical web end sensor 3 pneumatic mandrel Plywood sensor Web break sensor
Infeed section BG 02 Infeed feeding unit mounted on a 610 mm platform Voltage adjustment from 50–1000 N
Corona system BG 57 Corona system 5–10 kV 4 electrodes
Web cleaning system BG 58 TEKNEK system Cleaning of both sides Webs

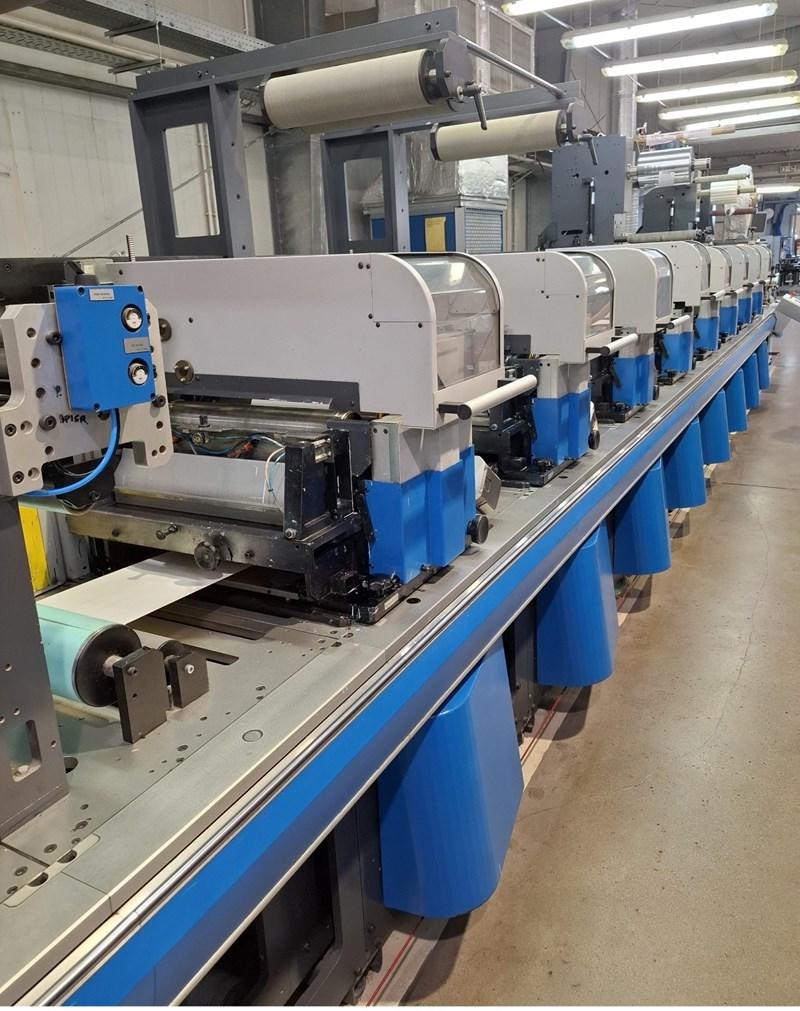

6 × Standard Flexo Printing Unit
2 × Reverse Flexo Printing Unit double-sided printing
Screen Printing BG 68 GEN III 1 × Screen Printing Unit Report Range 12–26
UV System BG 38 8 × UV Lamp IST MBS 6 Exhaust Fan UV/Corona
Hot Foil Stamping BG 56 Hot Foil Stamping Unit Report 9–21
Cold Foil Stamping BG 78 Cold Foil Stamping Kit
Die-cutting section, 1 × 24 Gap Master die-cutting unit t
Delivery section BG 10 610 mm platform with double Gearbox BG 07 Outfeed unit with die/machine die
Video inspection system BG 55 BST POWERScope 4000 CCD camera with 12x zoom Strobe lamp 19 monitor 390 mm mounting platform
Rewinding section BG 54 Single-spindle rewinder Integrated elevator Max. roll diameter 1250 mm Banana roller with pressure roller
Drive and control BG 09 Drive section with touch panel BG 72 Label counter Software Format correction Additional correction for die-cutters Storage of up to 500 jobs Conversion of inches to mm
Cooling 27 kW chiller
Automatic register control BG 27 Sensotec Web
Rail system 14 × starting rails 5 × rails 610 mm 40 × rails 1000 mm
Delam / Relam BG 26 Glue-side printing system up to 2 colors Additional guide roller Special roller coating
Antistatic BG 62 Simco control unit 2 × antistatic strips 8 × antistatic brushes
Carts Carriage for changing printing units
Remote diagnostics Remote control via the Internet HEIRES system

Printing accessories 25 × Anilox, 3 × magnetic cylinders 1x104T, 1x116T, 1x136T, 24 × printing cylinders 8x104T, 8x116T, 8x136T
