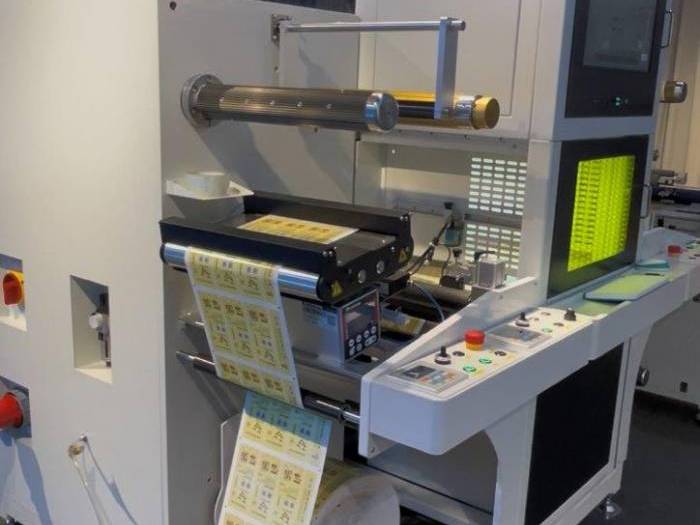

This system is a high-performance digital laser processing platform integrating automatic feeding, automatic deviation correction,
laser flying cutting and automatic waste removal.
The system is suitable for different processing modes such as
roll-to-roll, roll-to-sheet, sheet-to-sheet etc.
It is mainly used in the process of full cutting, half cutting, flying line, punching and waste removal of non-metallic materials such as stickers, films, PET, coated papers, BOPP, labels
(PP and PVC needs to be tested)
The system does not require cutting die, and uses electronic files import to cut, providing a better and faster solution for small orders and shorter lead times.

This system is a strategic tool for the short-run production.
With its no-mold design, rapid job switching, and ability to process complex shapes, it helps you to build a new kind of productivity centered on speed, flexibility and precision.

Technical Data:
- Max material width 390 mm
- Max cutting width 350 mm

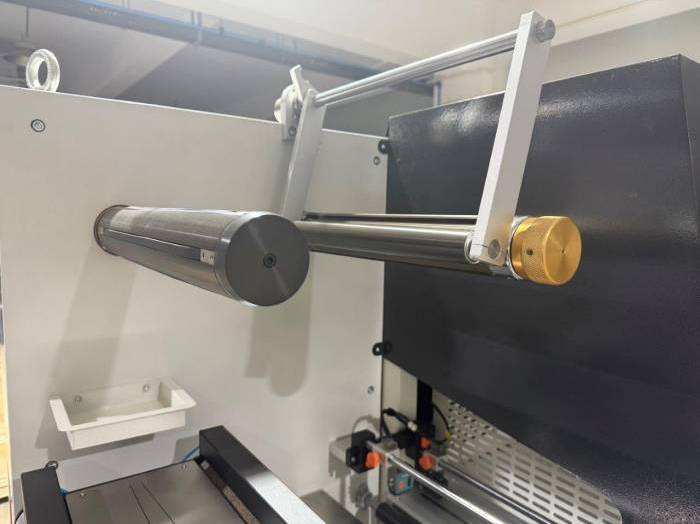

- Unwinder with max roll diameter of 700 mm
- Intelligent Tension Control System
- Ultrasonic Intelligent Correction System
- Cold Laminating System

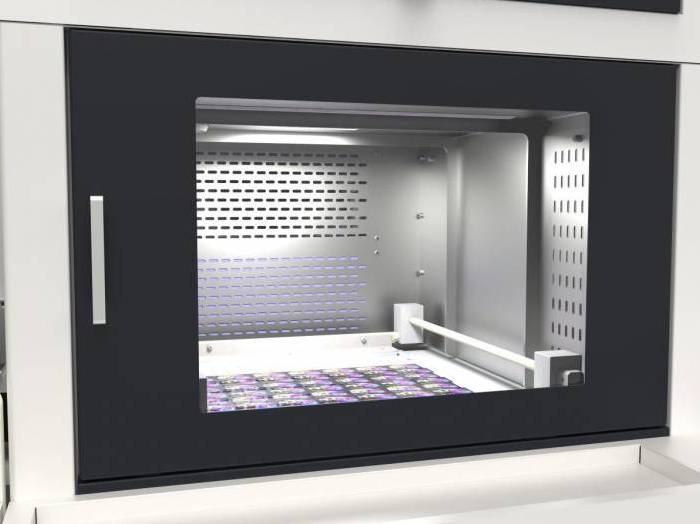

- Laser Cutting with CO2 Laser 300 W from Luxinar UK
- High-speed cutting - The speed is related to the design;
if simple design, cutting speed can be fast, up to 50 m/min
- Die Cutting Accuracy ± 0,1 mm
- Missing Label Detection

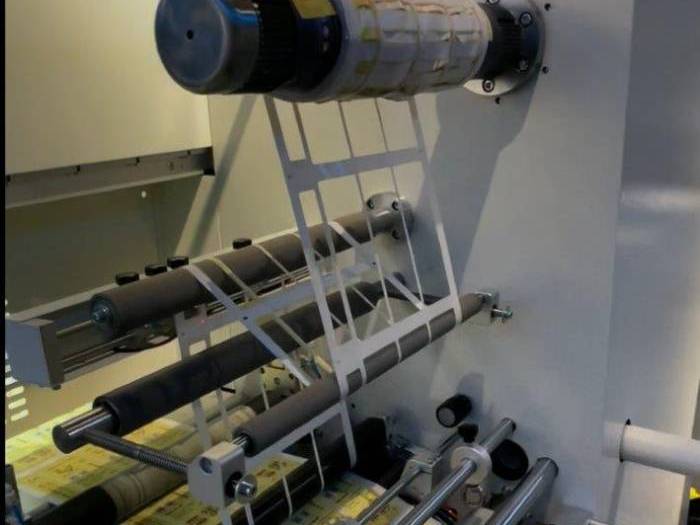

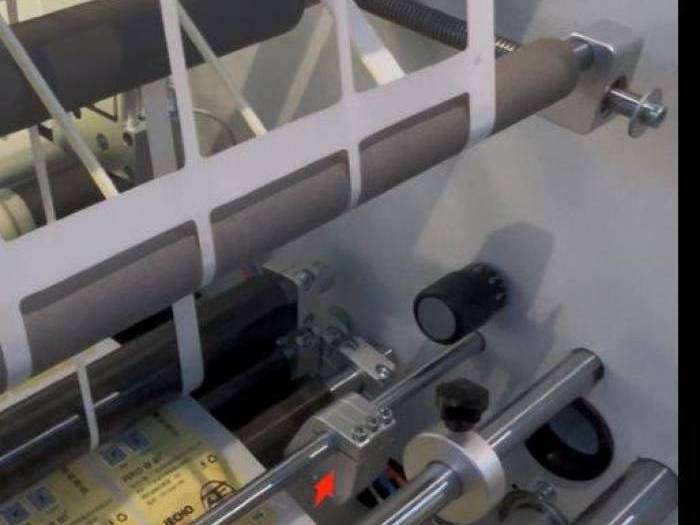

- Waste Removal
- Slitting Unit
- Rewinder with max roll diameter of 700 mm
- Cooling System
- Convection Smoke Removal System
- Graphic format supported: AI / BMP / PLT / DXF / DS / PDF

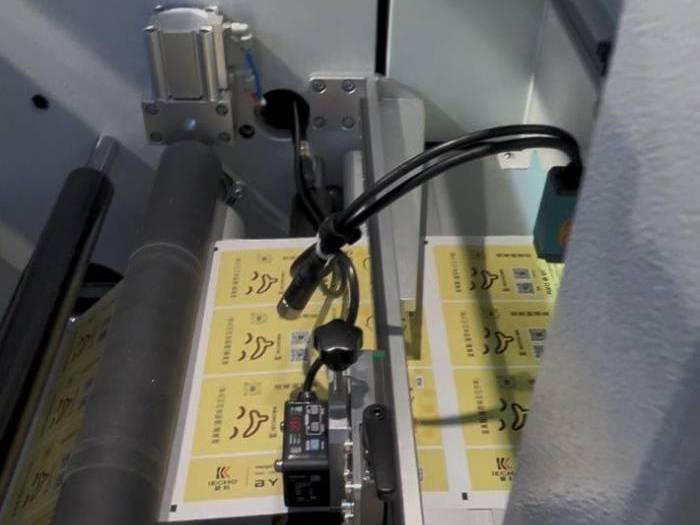

- Color-mark Sensor and QR Code Sensor
- Scan-to-Switch System - introduces an intelligent workflow
where each layout is managed through its own QR-Code.
Once scanned, the system automatically recognizes
the cutting file, adjusts feeding speed, and sets the
cutting path; no manual setup or tool change needed!

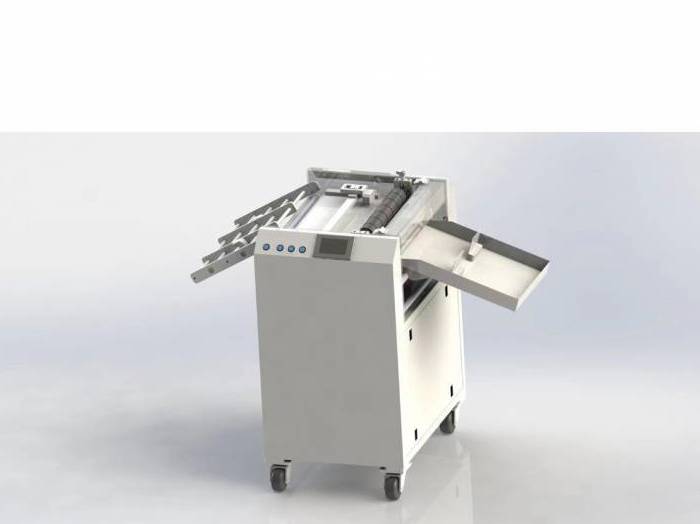

- Including Roll-to-Sheet Cutter
- Dimensions: W 203 cm D 158 cm H 201 cm
