Meler PS 20-NS/4 PUR | 2017 Used Machine for sale

pressdepo

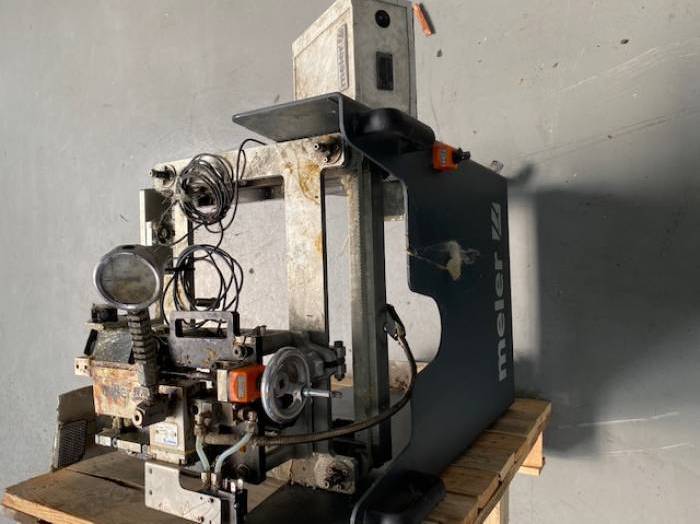

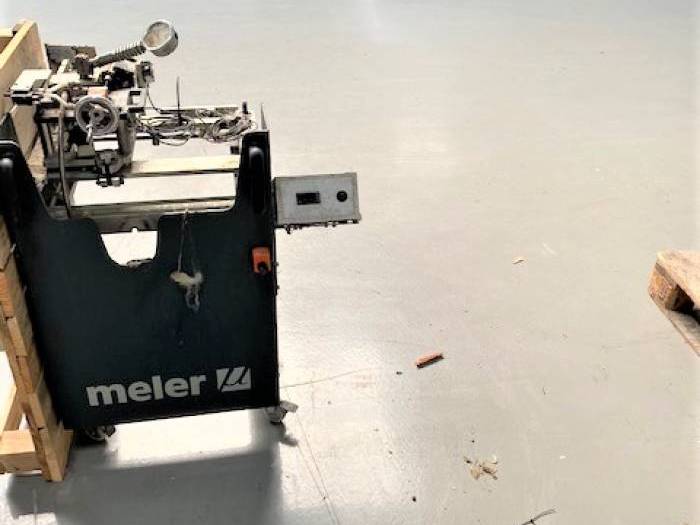

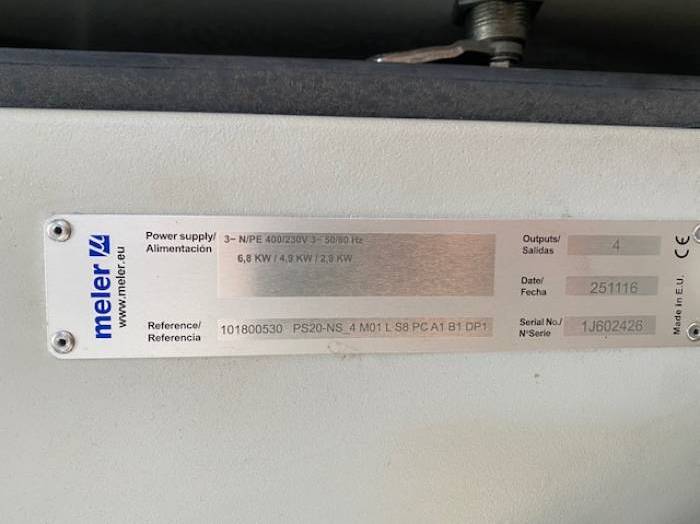

Pic 1 Meler PS 20-NS/4 PUR
gallery
Image1 Pic1 Meler PS 20-NS/4 PUR
Image2 Pic2 Meler PS 20-NS/4 PUR
Image3 Pic3 Meler PS 20-NS/4 PUR
Image4 Pic4 Meler PS 20-NS/4 PUR
Image5 Pic5 Meler PS 20-NS/4 PUR
Image6 Pic6 Meler PS 20-NS/4 PUR
pressdepo
Used Printing Machines and Equipment:
Perfect Binding machine
PD Ref: 84464 | Last updated: 11-09-2020
Viewed: 41 times
Enquiry's: 0


Age: 2017
Max.Size: 51 x 30 cm (20 x 11 inch)
Current State: In stock
Dealer Ref.No: 348115


pressdepo Contact Dealer Direct
machine  Auto-Notify service

Technical Description:



Non-Stop Drum melter for 20 kg PUR adhesive blocks <> Trolley with PUR Melting device suitable for Mueller Martini Corona <> Integration of melter in automated production lines for Kolbus or Mueller Martini perfect binding lines <> Real-time data monitoring <> Remote control <> Continuous block production of PUR, reactive polyolefin and non-reactive <> MELT-ON-DEMAND feature: smart melting for adhesive care <> NON-STOP system to avoid unwanted machine stops <> Leak tight design of melter assembly and cover <> Easy-clean opening ( > 120º) <> Non-stick surface for easy cleaning <> Simple and easy to handle cover assembly <> Collapsible casing for performing clean-in-place <> Up to 6 electrical channels <> Wider range of gear pumps <> Larger variety of extra options: Integration with RTFC system and external temperature control <> Main tank volume Ø286 x 395 mm (20 kg blocks) <> Melting reservoir tank volume 3.5L (used) / 6.5L (max.) <> Pumping capacity (*) 1, 2.5, 4, 8 and 15 cc/rev single pump <> 2×0.93, 2×1.86, 2×3.71 and 2×4.8 cc/rev double pump <> Melting rate (*) Up to 18 kg/h <> Number of pumps Up to 2 single pumps or 2 double pumps <> Number of hydraulic output 2 per pump <> Number of electrical outputs 2, 4 or 6 outputs (Standard version) <> Motor power 0.375 kW/ 0.55kW (with 15cc/rev pump) <> Speed 10-80 rpm (range 0-100 rpm) <> Temperature range From 0ºC to 200ºC <> Temperature control RTD ±0,5ᵒC (Pt100, Ni120 or NTC) <> Maximum power pressure 80 bar <> By- pass valve Pneumatic or mechanical <> Maximum power supply 1 single pump/ 2 outputs > 4.5kW/ per phase <> 2 single pumps/ 4 outputs > 6.4kW/ per phase <> External functions Input Motor start/stop external signal, standby external control, activity control, on/off pumping signal, <> Outputs Temperatures ok output, Finished block signal, Reservoir low level signal, Standby external control input, Motor start/stop external signal, Motor speed external control <> Electrical requirements 3N – 400V 50/60 Hz PE (please consult on other voltages)

Located: Europe Western
Current State: In stock
Available: 09-2020
Price: Registerregtosee
Incoterms:
