Used Horizon StitchLiner 6000 Saddle-Stitching System

The Horizon StitchLiner 6000 is a powerful all-in-one solution for booklet production. It combines collating, scoring, folding, stitching, and three-side trimming in a single, efficient process. With its user-friendly operation, high productivity, and versatility, this system offers numerous advantages for print shops, binderies, and on-demand printing.


This StitchLiner 6000 consists of the following components:

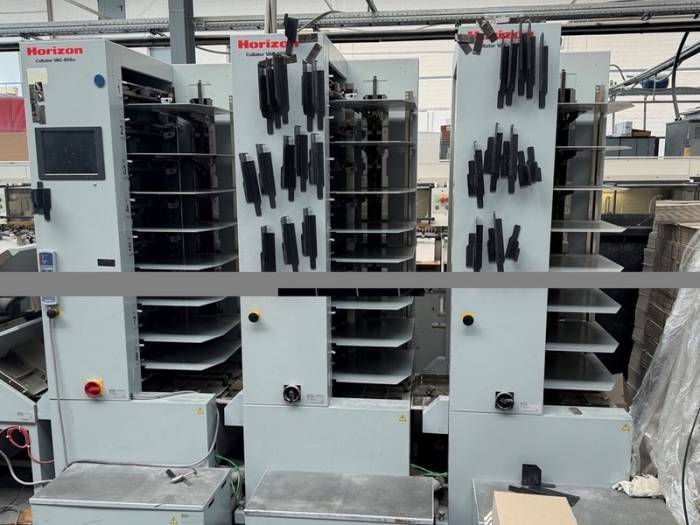

- 2x VAC-80Sm Collating Towers
- 1x VAC-80Sa Collating Tower

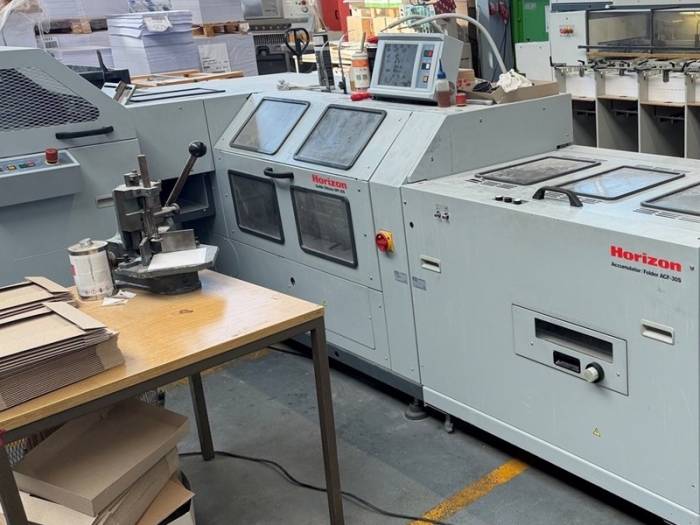

- ACF-30 Accumulating and Folding Unit

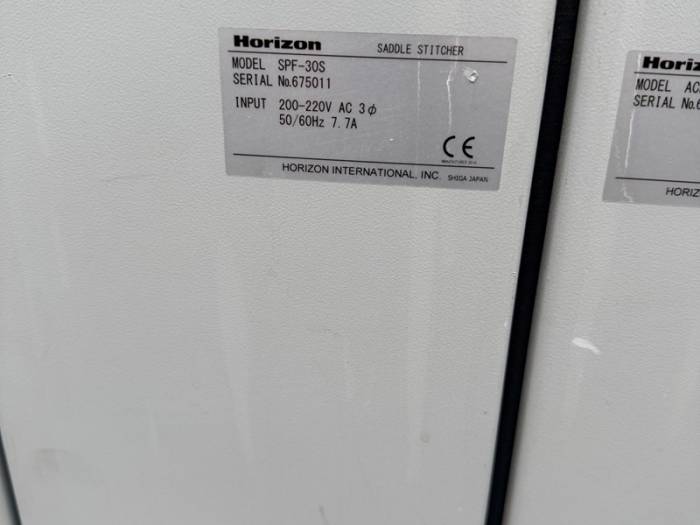

- SPF-30 Saddle-Stitcher
- HTS-30 Three-Knife Trimmer


Key Features:
- 24 stations 3 x 8 stations
- Inline production from collating to finished product
- Variable data processing: The system can handle personalized prints and variable page numbers, making it ideal for digital printing
- Fully automatic format adjustment for quick job changes
- Touchscreen for user-friendly operation, even for less experienced operators


Technical Specifications:
- Sheet sizes: Max. 350 x 500 mm, Min. 120 x 210 mm
- Paper weight: 64-300 g/m²
- Processing thickness: Up to 5 mm approx. 50 sheets of 80 g/m²
- Production speed: Up to 6,000 booklets/hour
- Stitch spacing: 60-150 mm
- Trimming untrimmed : Max. 350 x 250 mm, Min. 120 x 85 mm
- Trimming trimmed : Max. 340 x 240 mm, Min. 85 x 75 mm
- Power supply: 200-240V, 50/60Hz
- Compressed air: 5 bar, 230 l/min
- Floor space: Approx. 7,320 x 2,550 mm without delivery
- Total weight: Approx. 2,300 kg



All-Inclusive Service Package
We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer.


Sustainable and Economical
Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.
