4 honeycomb plates
Foundation exchange table (third-party product)
Machine raised by 300 mm

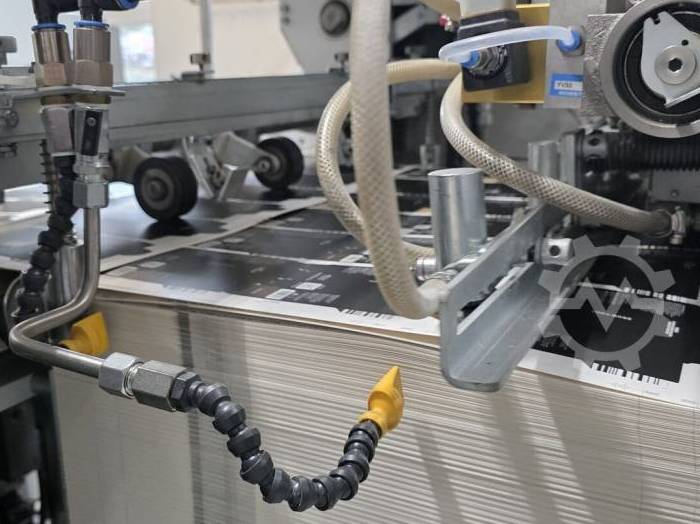

Machine is equipped with a foil braking brush (not visible in the video) or, if equipped with extraction/tube cutter, with a funnel system!
Max. sheet format: 1,040 × 740 mm
Min. sheet format: 400 × 350 mm
Max. embossing/hot foil stamping area: 1,010 × 702 mm
Production speed: up to 7,500 sheets/hour
Embossing force: up to 2.6 MN (286 US tons)
Foil unwinders/web advance shafts: 2 standard
Foil width: 25–1,020 mm
Max. roll diameter: 250 mm
Heating temperature: 20–160 °C
Heating zones: 12, individually adjustable
Paper: from 80 g/m²
Cardboard/solid board: up to 2,000 g/m²
Corrugated board: up to 4 mm
Machine length: approx. 6.50 m
Machine width: approx. 6.00 m
Machine height: approx. 2.20 m

Important notes:

Bobst platen conditioning performed (die service) in May 2026.

High-performance machine for stable foil transport, even at high speeds and with long foil unwinders!

Extremely short setup times for sheet processing and foil unwinding! Not a Chinese copy or a Bobst BMA replica!
