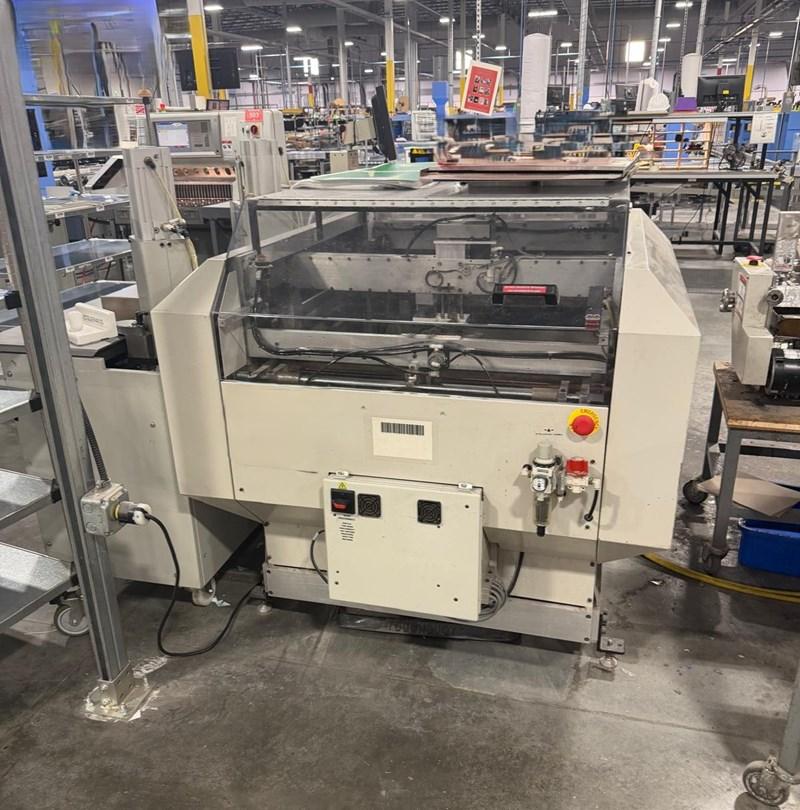

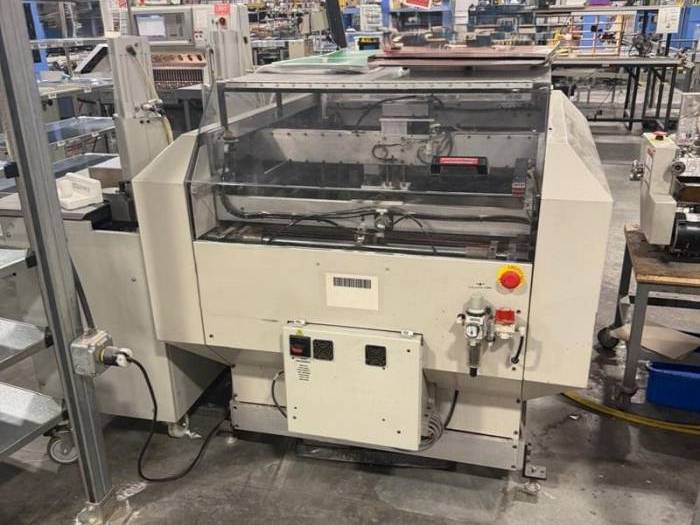

<strong>Ref:11159 . 2017 GP2 Technologies SC3-31 Autocase</strong>
Fully integrated automatic case making system designed for hardcover and rigid case production with minimal manual input.
<strong>Process:</strong>

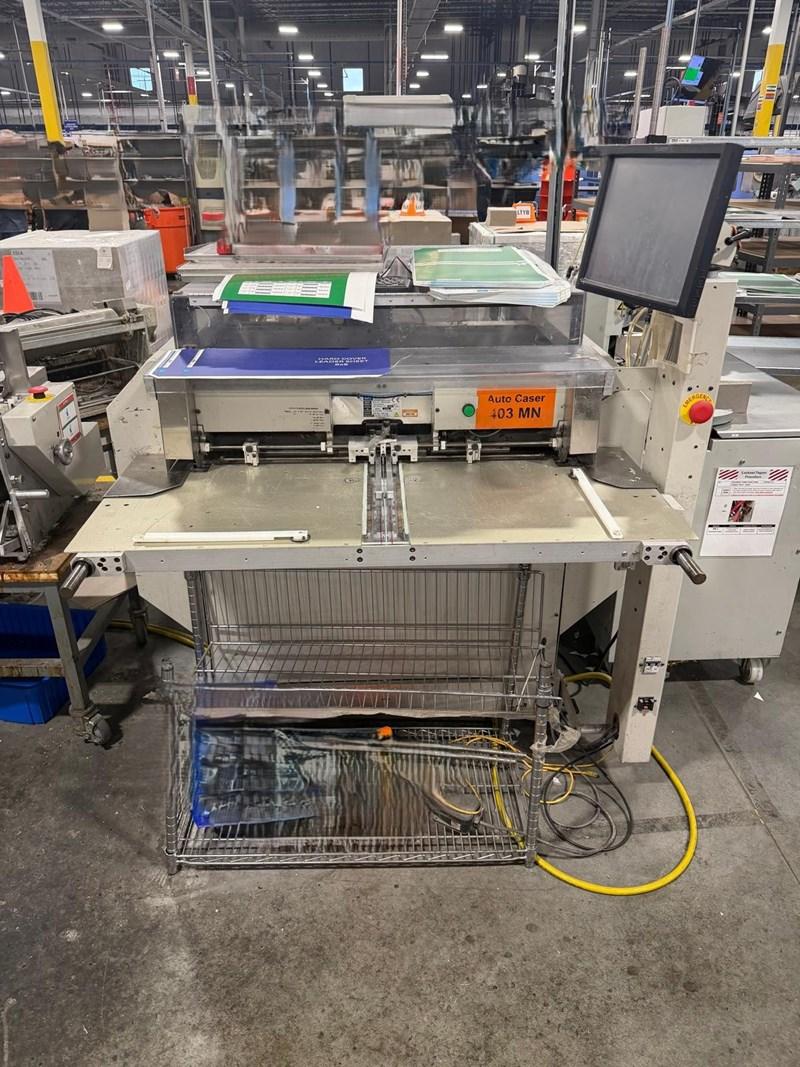

The operator places the cover material onto the G-2 gluer, which automatically feeds it and applies adhesive, then positions the boards and spine onto the glued cover.
The SC-3 system then takes over, automatically feeding the case inward, trimming corners, wrapping and folding each side, and pressing the boards to the case material.
All functions are controlled via a touchscreen interface, providing intuitive setup and consistent results.
<strong>Features:</strong>
Fully automatic case making with minimal operator intervention.
G-2 Gluer with Automatic Viscosity Control for consistent adhesive application.
Automated corner trimming and side wrapping for clean finished cases.
Integrated pressing system for accurate board bonding.
Tablet touchscreen for centralized control and streamlined operation.
Reliable, repeatable case alignment and finish quality.
<strong>Specification:</strong>
Case Size Range:
Height: 168.1–406.4 mm
Width: 218.9–660.4 mm up to 711.2 mm without corner trimmer option
Board Thickness: 1.52–3.18 mm padded board up to ˜6.35 mm
Spine Width: 6.35–82.55 mm
Operating Speed: Up to 300 cycles per hour.
