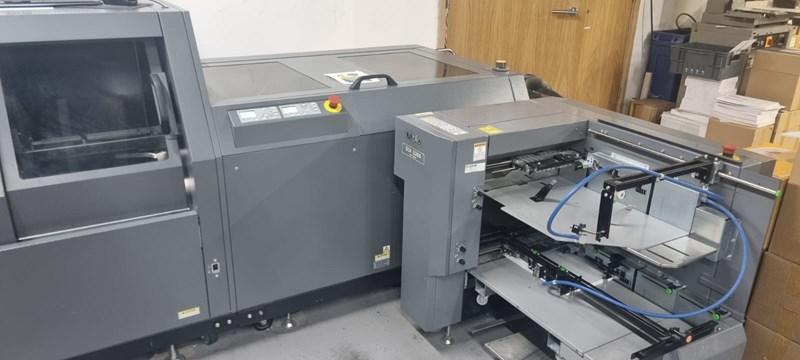

Model/Type: Saddle Stitcher DBMS-F5/S5/T5
Machine type: Floor type
Paper type:
Fine quality paper: 64 to 157gsm, Art/Coated paper: 84.9 to 157gsm, Cover sheet: 300 gsm.
Paper size Width x Length : Minimum: 120 mm x 210 mm / Maximum: 356 mm x 610 mm
Type of stitching: Saddle stitch
Maximum booklet thickness: 6.0mm 1 Cover sheet 29 inner sheets
Maximum processing speed: A4 size, within 10 sheets 5,050sets/h , A3 size, within 10 sheets 4,000sets/h
Thickness of Scoring/Folding: 1.0mm DBMS-S5 stack sub-sets on the buffer section
Trimming width: 1 to 25mm
Extras: New knives installed in 2025

Model/Type: Sheet Feeder DSF-2200
Machine type: Floor type Sheet Feeder
Maximum paper loading volume: Tray A Upper tray : 65 mm / Tray B Lower tray : 200 mm
Paper size Width x Length : Minimum: 105 mm x 200 mm / Maximum: 356 mm x 508 mm
Number of bins: 2 bins
Paper quality: Fine quality paper: 52.3 to 300 gsm, Art/Coated paper: 79 to 300 gsm
Processing speed: A4 SEF 200 sheets / min, A3 SEF 154 sets/min
Additional functions: Static Eliminator, End mark function, Alternate Bin Feeding
Dimensions: When the stand-alone use / stored: 920 W × 750 D × 843.5 H mm
Power Supply: AC 120 V 60 Hz, AC 220 to 240 V 50/60 Hz
Power consumption:260W 2.2A 120V / 1.1A 220 to 240V
Weight: 115kg
