Working-hours: only 14500 (06-23)
- Format - max. 750 x 1050 mm
- min. 350 x 400 mm
- Net cutting area 727 x 1050 mm
- Materials:
- paper min. 80 g/m²
- solid board up to 1400 g/m²
- corrugated board
B-flute up to 4 mm
- Cutting Pressure max. 300 tons
- Speed max. 7500 Sh/h
- Pile height at feeder 1000 mm (Non-Stop)

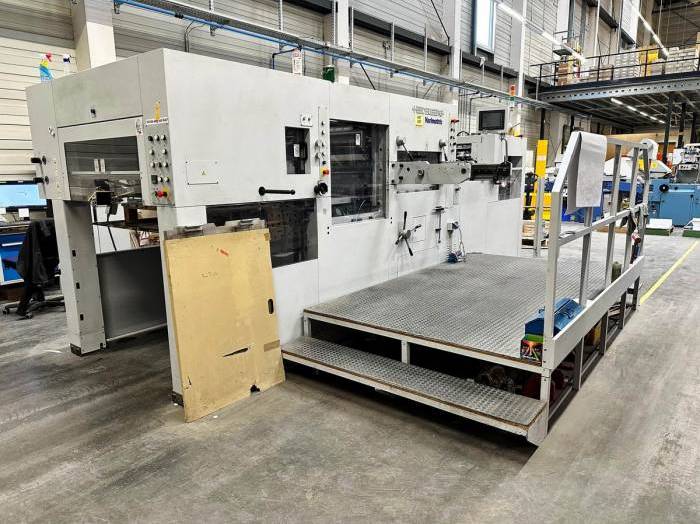

- Fully automatic diecutting-, grooving- and embossing machine

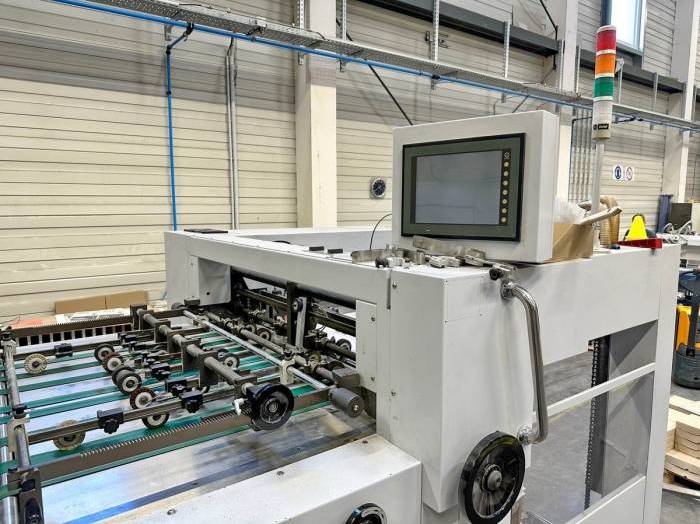

- Touch screen control
- stripping-station for internal waste, side- and rear sheet edges
- Centerline-system
- Small-size device min. 300x350 mm
- Non-Stop automatic feeder with preloading system
- Non-Stop standard delivery
- Register system in feeder and punch station
- mechanical double sheet control
- side-lays on operating- and drive side, switchable as pull- or push-lay
- 4 active front-lays with sensors for stop-control
- splitted fine adjustment of front-lays for drive- and operating side
- Gripper-edge adjustable 10-18 mm
- Delivery with gripper-edge removal
- Stripe insertion device in delivery
- Central and automatic chain lubrication
- 2 standard stripping frames
- 2 diecutting chases
- Diecutting plate 5 mm
- Screw-compressor Varimatrix 105-CS
