Year: 2025
Condition: perfect as new - showroom machine

Technical specification:
Max binding length: 460 mm
Max binding thickness: 60 mm
Speed: 300–400 books/hour
Glue melt time: 35 min
Milling cutter: 32 teeth knife disk
Make glue up way: 3 glue roller
Clamping way: √
CNC double speed: /
Display way: 10.2-inch touch screen
Binding way: Left mode
Automatic side glue:
Measure thickness:
Dust suction: Double dust suction
Thick and thin book clamping adaptive:
Smoke extractor:
Power: 220V (110V) ±10% 50Hz (60Hz) 3800W
Machine size: 1900 × 750 × 1100
Weight: 350 Kg

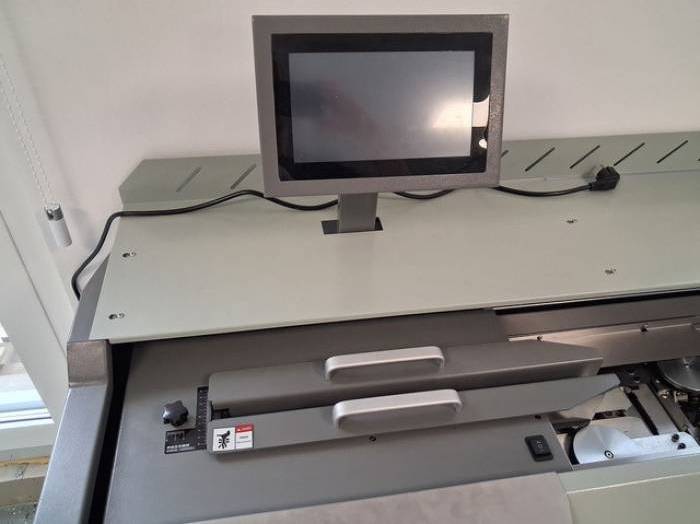

10.2 inch touch screen

Colorful touch screen, touch sensitivity. New design of the operation interface, easy and convenient operation.
High power milling cutter motor

Adopt 1500W milling cutter motor, better milling effect and even distribution of cutter groove.
Heavy duty monolithic rack design

A number of strengthened design, reduce the vibration of the machine when running, the center of gravity is stable, can withstand heavy tasks.
Clamp lifting and quick open patents

After the clamp is lifted, the depth of milling can be increased to meet the binding needs of different materials. Quick open design for easy cleaning of internal residual glue.

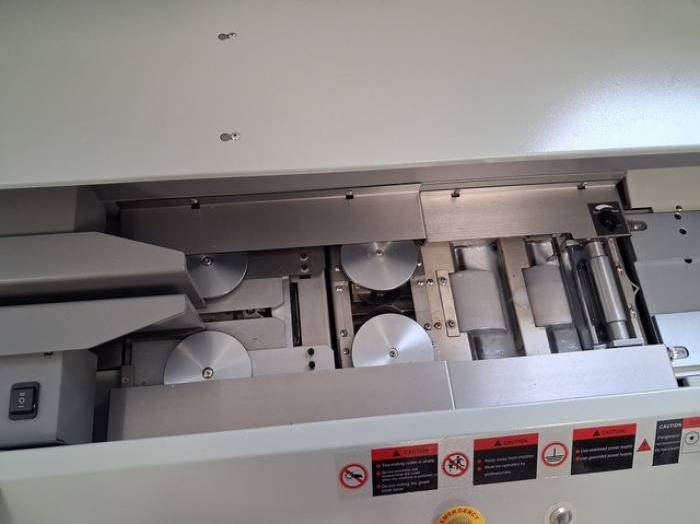

Three glue rollers side glue

Glue make up full and uniform, ensure perfect book bind and firm. Iron glue roller will iron the glue improve the quality of binding. Also side glue makes the book more better.
Frequency conversion technology

Intelligent frequency conversion technology, improve the binding speed and the positioning accuracy, ensure the quality of the binding.
Double dust suction blade

Less residue paper left on the table and glue box, increase the quality of book bind.
