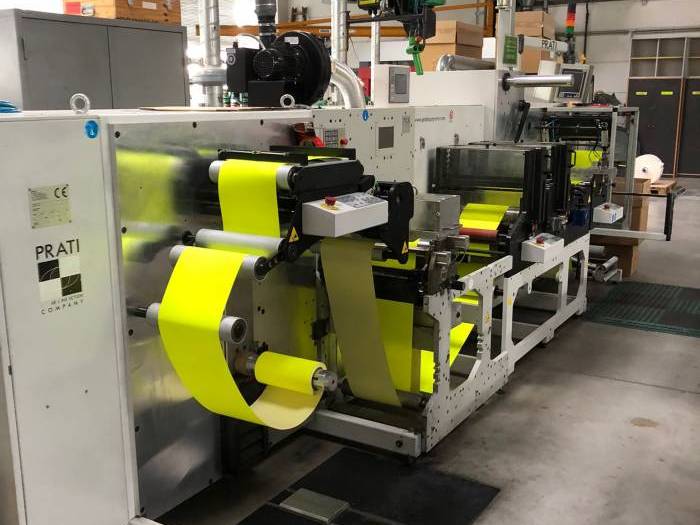

Prati Vega Plus LF330 CNT Slitter / cutter / rewinder with inspection and label checking


 Age: 2011
 Unwinder
 Rewinder
 Slitting Unit
 1 x Flexoprinting Unit - Varnish
 UV Dryer
 2 x Rotary Die-Cutting Unit
 Sheeter
 Perforation Unit
 Cores: 25 mm, 40 mm, 45 mm, 50mm, 76 mm - wall thickness 3mm
 Material width paper and film: min.: 150 mm / max.: 340 Print width: max. 310
 Printing capacity: Punching only max. 200 m / min., printing max. 70 m / min.
 max. roll Ø - down: 1000 mm / max. roll Ø - up: 400 mm Punching width: max. 320

 Slitter / cutter / rewinder with inspection and label checking.
 Unwind with tension control and single edge guiding.
 Pneumatic bars on the splice tables for changing rolls.
 Color touch screen operation for all functions, programs and jobs.
 For automatic non-stop rewinding (3-spindle turret) and cutting rolls in register to smaller size rolls.
 Waste suction removal.
 During the process the labels can be counted (numbers and meters) and checked for quality and missing labels with a missing label system.

 Speed: 0 – 200 m/min
 Electrics 400 V, 3 Ph, 28 kW, 50 Hz.
 Dimensions 1x 20ft container: 590x230x220 cm – 3.000 kgs
