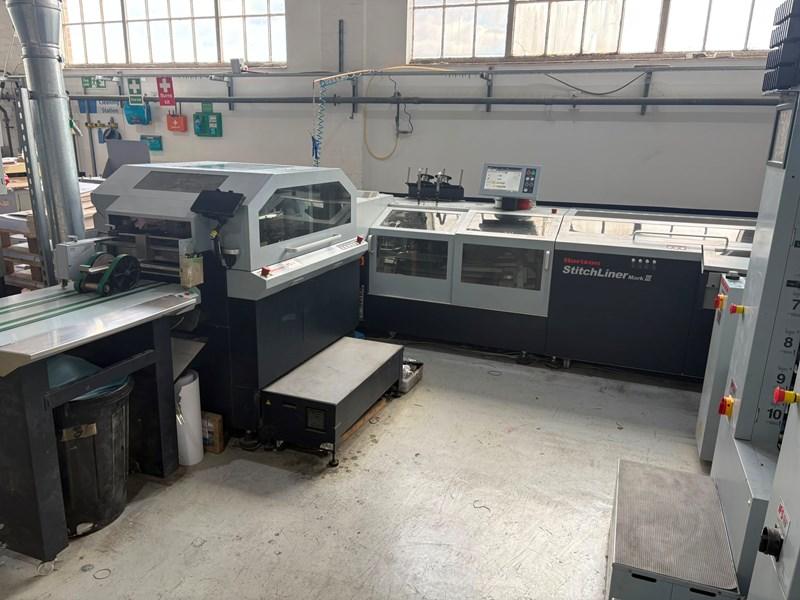

<strong>Ref:11155 . 2021 Horizon Stitchliner Mark III</strong>
Only 8.35 million books made!
Latest generation, fully automatic setting Sheet Collating and Saddle Stitched Booklet System.
<strong>Features:</strong>
Simple, fast set-ups by non-specialist finishing operators
Works from flat-sheet 4-page sections
No need to pre-fold
Integrated automatic set-up 3-knife trimmer
High quality books with sharp spine definition
<strong>Comprising:</strong>
30 station 1 x VAC 1000Ha 2 x VAC 1000Hm 10 station tower suction collators
with touch-screen control, double- and miss-sheet control.
ST-40 stacker to
Accumulator/Folder ACF-40 with double gate-fold to;
SPF-40 Saddle stitcher with 2 x Hohner 43/6S stitching heads to;
HTS-40 Three knife trimmer
PK-30 Kicker
Shingle delivery belt.
<strong>Specification:</strong>
Max sheet size: Portrait: 356 × 508mm
Landscape: 267 × 610mm
Min sheet size: 140 × 194mm
Finished booklet size approx :
Max: 352 × 303mm
Min: 120 × 85mm
Typical formats: A3, A4, A5, B4, B5
Paper weight: Uncoated: 52–350 gsm / Coated: 73–350gsm
Max stitch thickness: 5mm
Equivalent to ~10mm booklet thickness ~50 sheets of 80gsm
Loop stitching: Max ~3mm stitch thickness
Wire size: Typically 0.4 – 0.6mm No.24–27 range
Trim width: 2 – 25.4mm
Max trim thickness: 10mm
Max speed: Up to 6,000 booklets/hour
A4 landscape: 5,300/hour
