Installed in 2025

Only used for testing

Maximum coating width: 530 mm

Maximum sheet format: 530 x 800 mm

Minimum sheet format: 200 x 250 mm

Maximum belt speed: 32 m/minute 2.400 B2 sheets/hour

Paper thickness: 0,15 - 0,7 mm

Coating types: AQ, UV and primer

Digital and Offset prints

Maximum pile height feeder: 750 mm

Coating types: AQ, UV, Primer

Including high-end UV- and IR/Hot air drying systems

Including automated high pile feeder

Suitable for short and medium runs

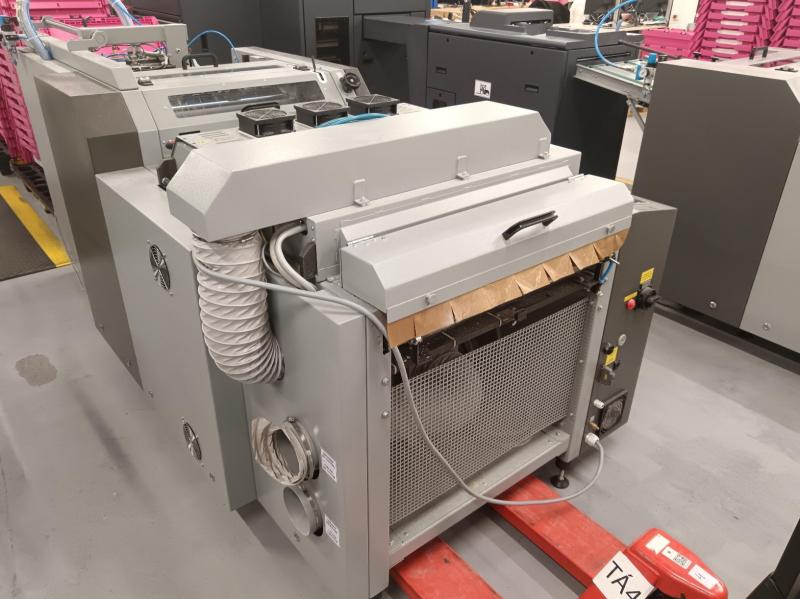

Sheetfed coating machine for full coverage coating – flood coater

3-roll coating application system

Configuration:

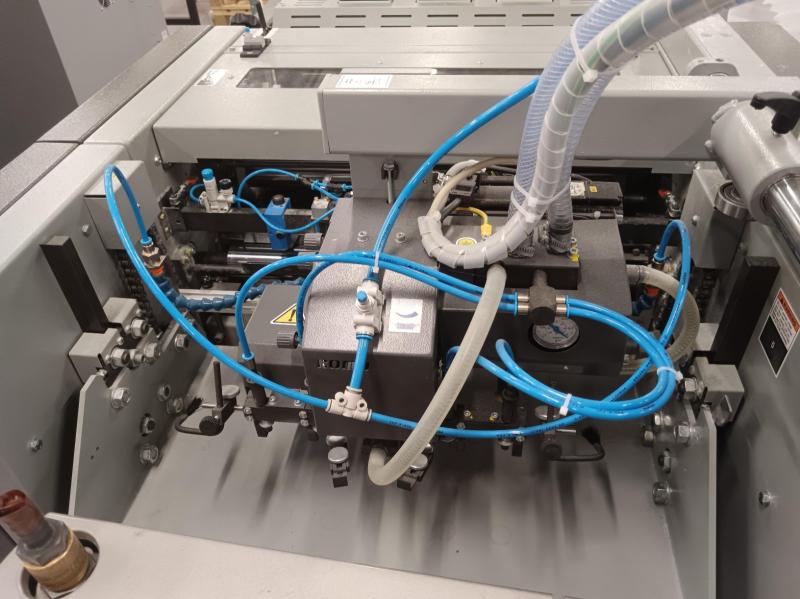

Automated sheet feeder fully integrated, including a high-end feeding head

Roller coating unit 3-roll system including a heated chrome roller

IR/Hot-Air-dryer 3 lamps x 1,1 KW – infinitely adjustable

UV-drying system including electronic power supply EPS - infinitely adjustable

Heated metering roller

Coating circulation pump peristaltic pump

Thin substrate blow bar

Adjustable impression cylinder meetering blade

Touch-Screen machine controls

Manual roller positioning, including dial indicators

Sheet catch tray fixed

Adjustable jogging table/sheet catch tray

Alternative: Automatic High Pile Stacker for standard pallets

Additional IR Lamp in front of coating unit 1,1KW for sheet preheating
