FLEXOR
FLEXOGRAPHIC PRINTING PRESS
Made of rigid and Robust Construction to ensure safety and quality also stability and High speed with less vibration, low noise, printing quality and minimum chances of industrial downtime. Power saving, and finest quality output.

Operation and adjustment Very Simple and Quick, Change of Size can be done in Few Minutes, it is Easily to Operate the Machine Successfully.

Flexor printing Press designed for doing basic, four colour printing capabilities till six colour, prepared easily to be installed, anilox roller made from ceramics. It is an integrated system enabling to make printing with Intrinsic accuracy and it is fairly easy to use. PLC control. The machine is suitable for, Kraft paper, shiny paper, coated paper board, recyclable materials without losing print quality or efficiencies in roll material

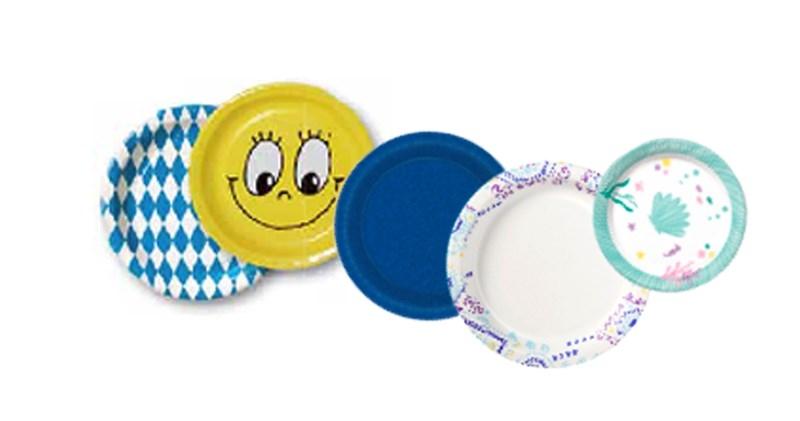

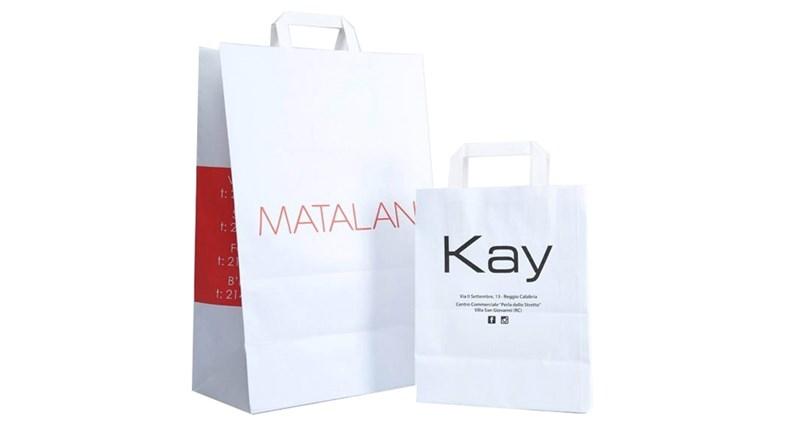

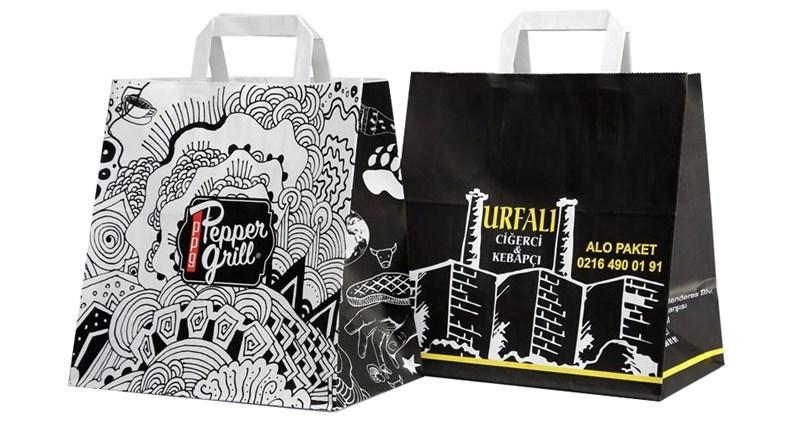

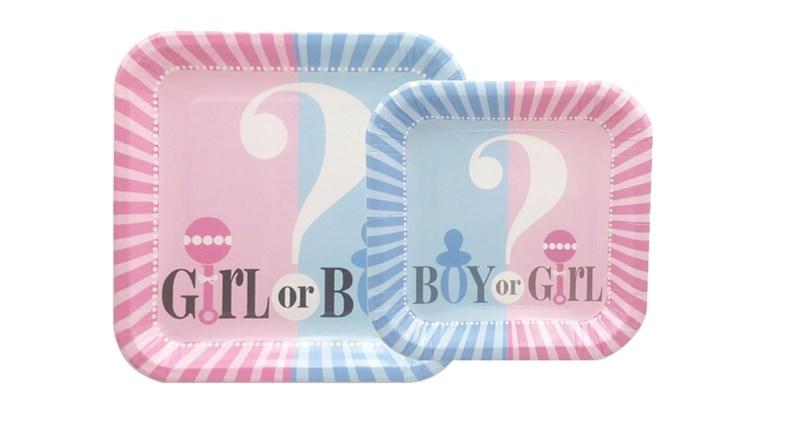

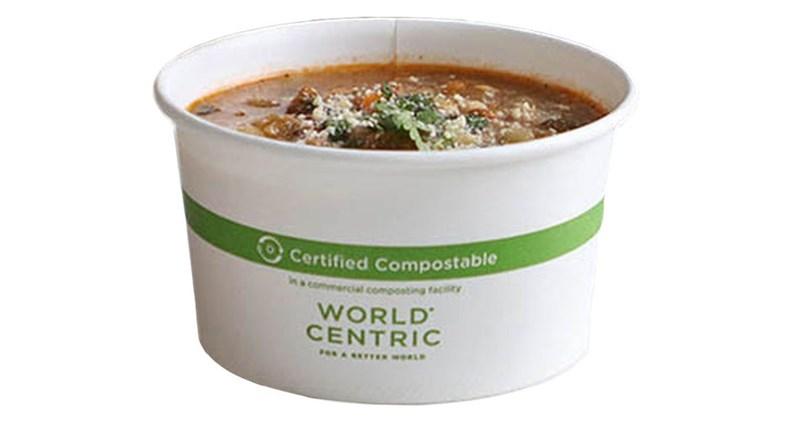

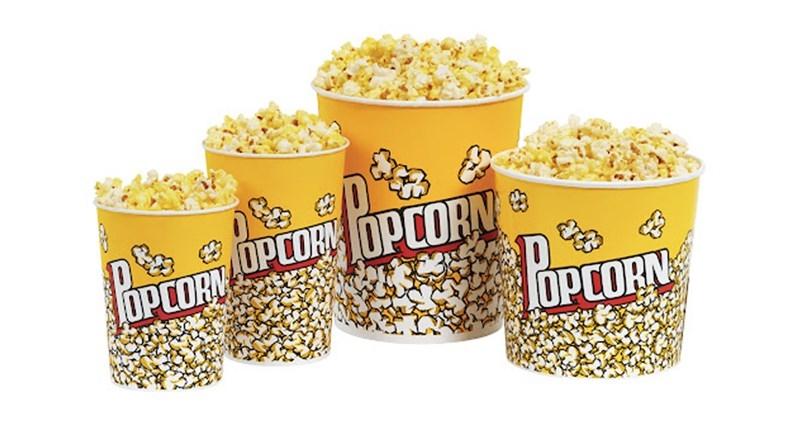

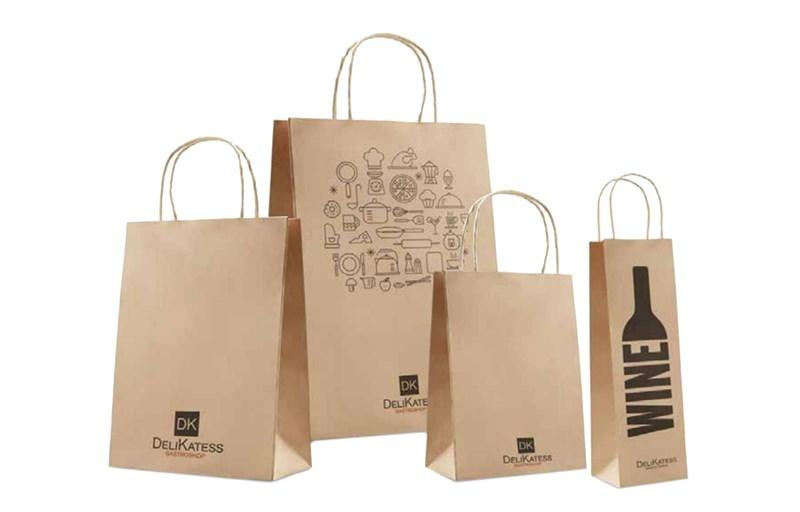

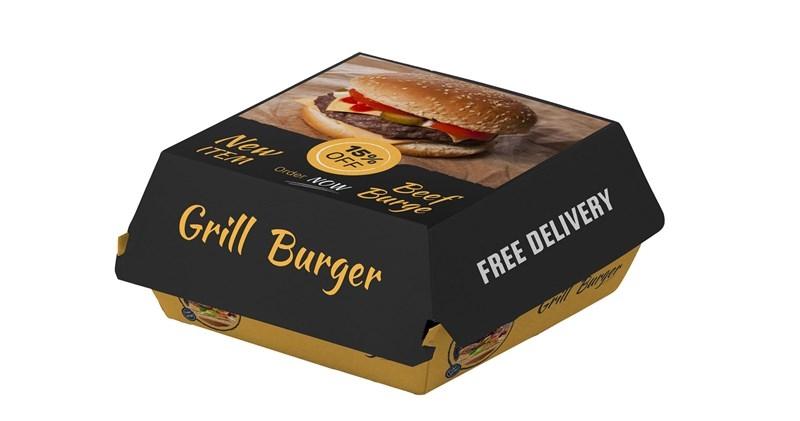

Flexor machine ideal for producing a variety of daily eco-friendly Paper cup, paper bowl paper bags widely used in bakery’s, pharmacies, fast food restaurants, Coffee shops, Supermarkets, and Retail Outlets.

Max. Printing material width 1000mm
Max. Printing width 960mm
Printing length range 230-960mm
Max. Printing speed 5-100m/min
Register precision ±0.15mm

The thickness of plate 2.28mm 0.38mm can be customized

Max. Rewinding diameter 1300mm

Max. Unwinding diameter 1300mm

Power supply AC 380V, 50Hz

Rated power 27 kW

Machine dimension L8200XW2500XH2800mm

Machine weight 6200kg
