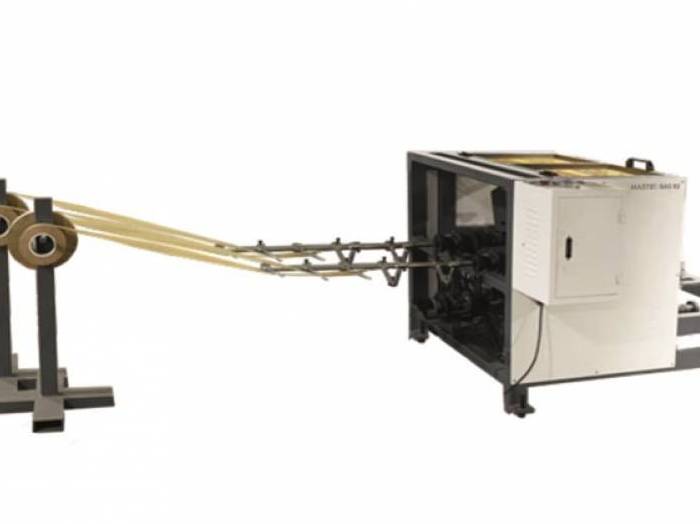

Paper Round Rope Making Machine is double station make twist rope

Technical Data
• Core Diameter of Raw Rope Roll: F 76 mm (3'')
• Max. Paper Rope Diameter: 450 mm
• Paper Roll Width: 20-100 mm
• Paper Thickness: 20-60 g/m2
• Paper Rope Diameter: F 2.5-6 mm
• Max. Rope Roll Diameter: 300 mm
• Max. Paper Rope Width: 300 mm
• Production Speed: 25-40 m/min
• Machine Supply: 220 V
• Power: 1.5 KW
• Weight: 700 KG
• Dimension: L 1580 x W 1440 x H 930 mm

Parameters
• Power: 3 Phases, 380V ±10%, 50 Hz
• Compressed Air: Pressure: 0.6 MPa - Oil and Humidity: ? 8 mg/m3
• Installation Height: Max. altitude: 1500 m
• Ambient Requirement: Relative Moisture: Max. 65% when 40 °C - Temperature Range: 10~40 °C
