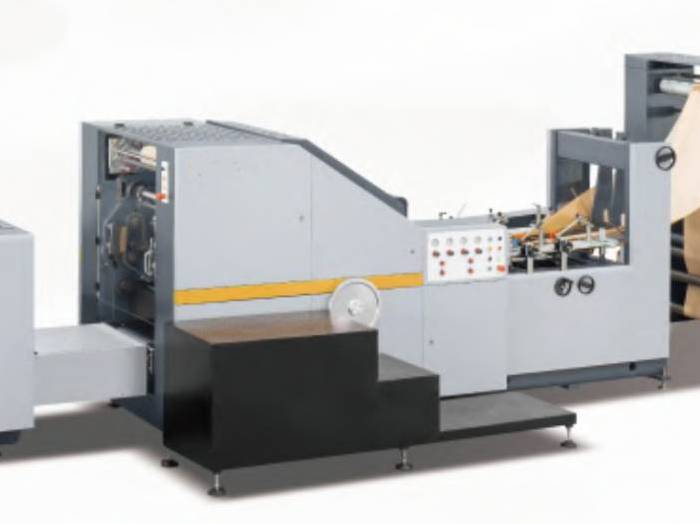

MASTER BAG 330 Rolling Feed Square Bottom Paper Bag Making Machine. This advanced machine is designed to create paper bags using either blank or printed paper rolls as the raw material. With the ability to perform side gluing, tube forming, cutting, bottom impressing, bottom gluing, bottom forming, and final product collection all in one go, this machine offers unparalleled efficiency.

Featuring a high-speed PC control system and a user-friendly touch screen display, the machine allows for easy operation. The servo motor control ensures precise bag making length, enabling the production of paper bags in a variety of sizes to meet different customer needs.

The machine comes with several noteworthy features. The automatic edge control system, powered by Italy SLECTRA technology, guarantees regular paper feeding. Additionally, the automatic counting system allows the user to set a specific number for efficient counting. The newly designed table facilitates the collection of larger paper bags.

The PC, controlled by Germany REXROTH, enhances the overall control of the machine. Furthermore, the automatic gluing system has been upgraded to improve performance and reduce labor requirements. The new design ensures a more regular and consistent glue flow, minimizing maintenance and washing.

The paper tube forming system can be adjusted as a whole, increasing work efficiency and stability.

Technical Specifications:

Model: RZFD-330
Width of Paper Bag: 120-330mm
Cutting Length: 270-530mm
Width of Bottom: 80-180mm
Max Paper Roll Width: 450-1050mm
Diameter of Material: 1200mm
Bag Speed: 30-200pcs/min
Paper Thickness: 60-150gsm
Main Motor: 19.5KW
Paper Roll Core: 76Φ
Voltage: 380V 3 PHASE
Machine Weight: 8500KGS
Overall Dimension: 1000037001900MM
Choose the MASTER BAG 330 for efficient and high-quality paper bag production, and experience the benefits of improved productivity and customer satisfaction.
