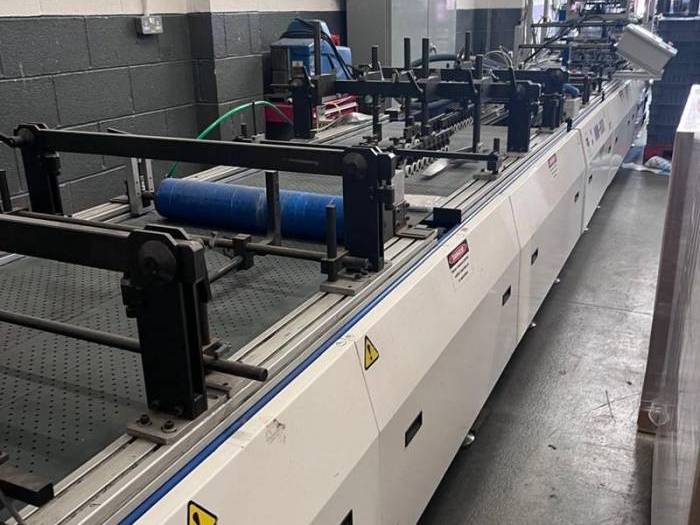

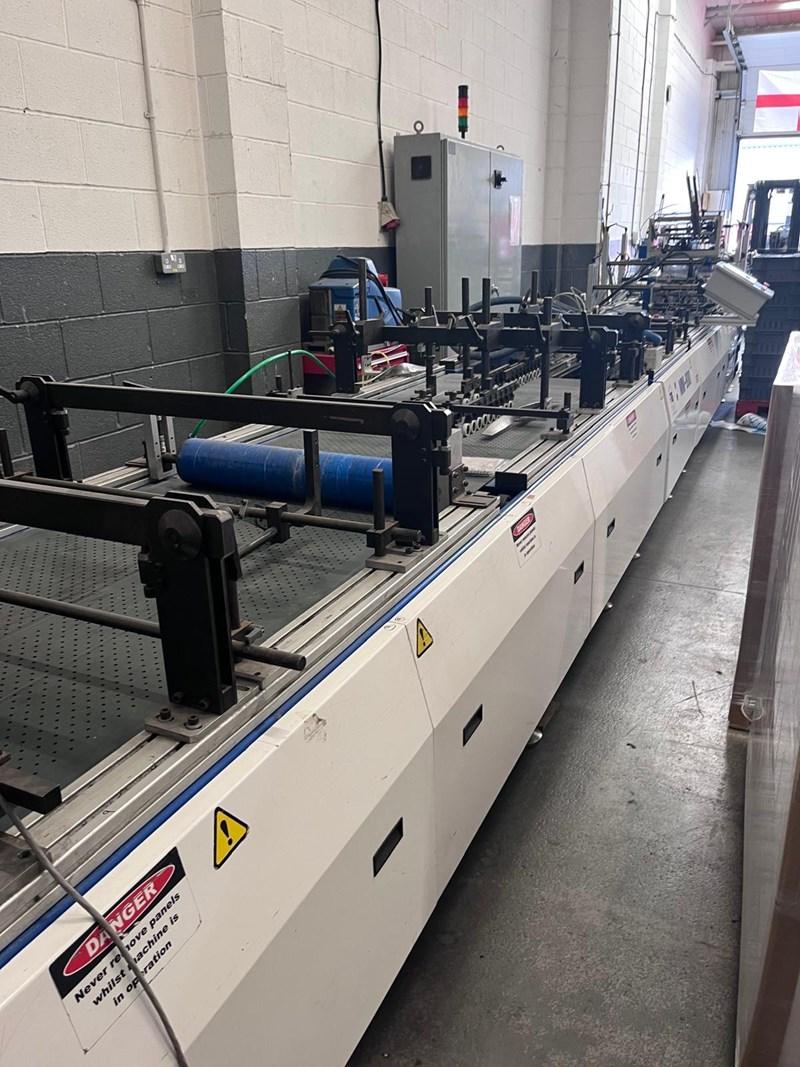

<strong>Ref: 11161 . 2015 Pack-Smart IPF 30-27-4 Integrated Finishing System</strong>
Ideal for direct mail, gift card and security packaging, media packaging, tipping, windowing, folding, gluing and other specialist print-finishing applications.
<strong>Equipped with:</strong>

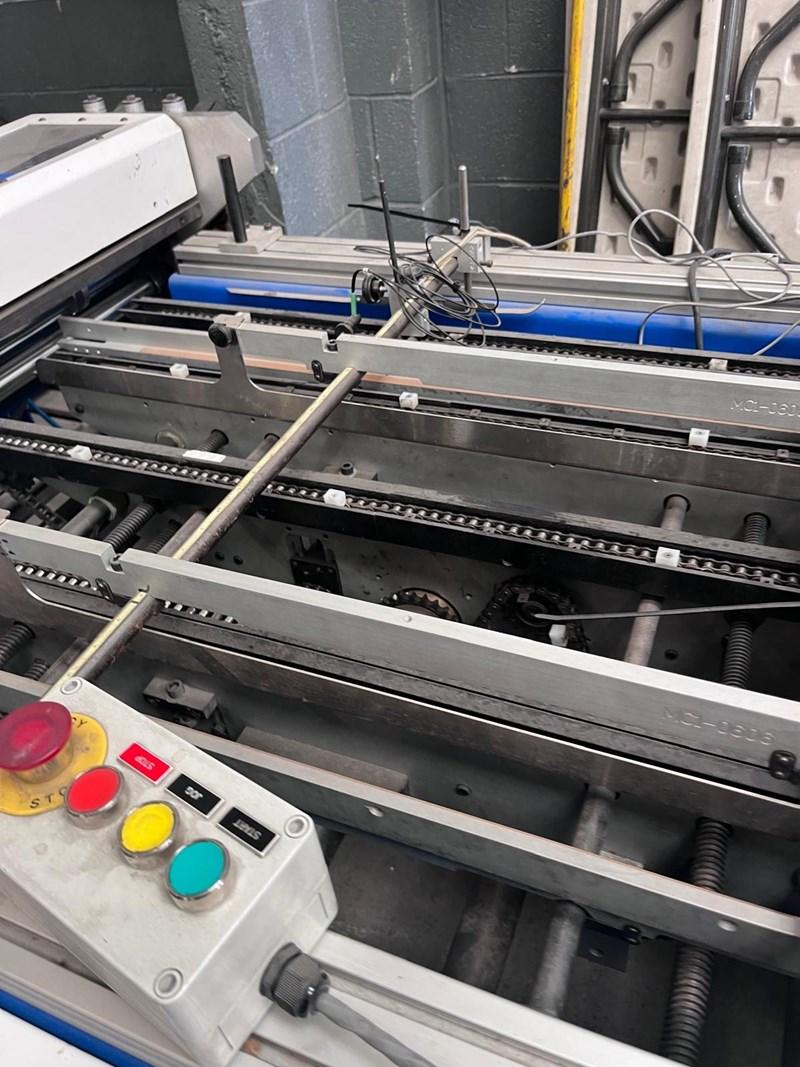

Rotary vacuum paper feeder
Precision product alignment registration

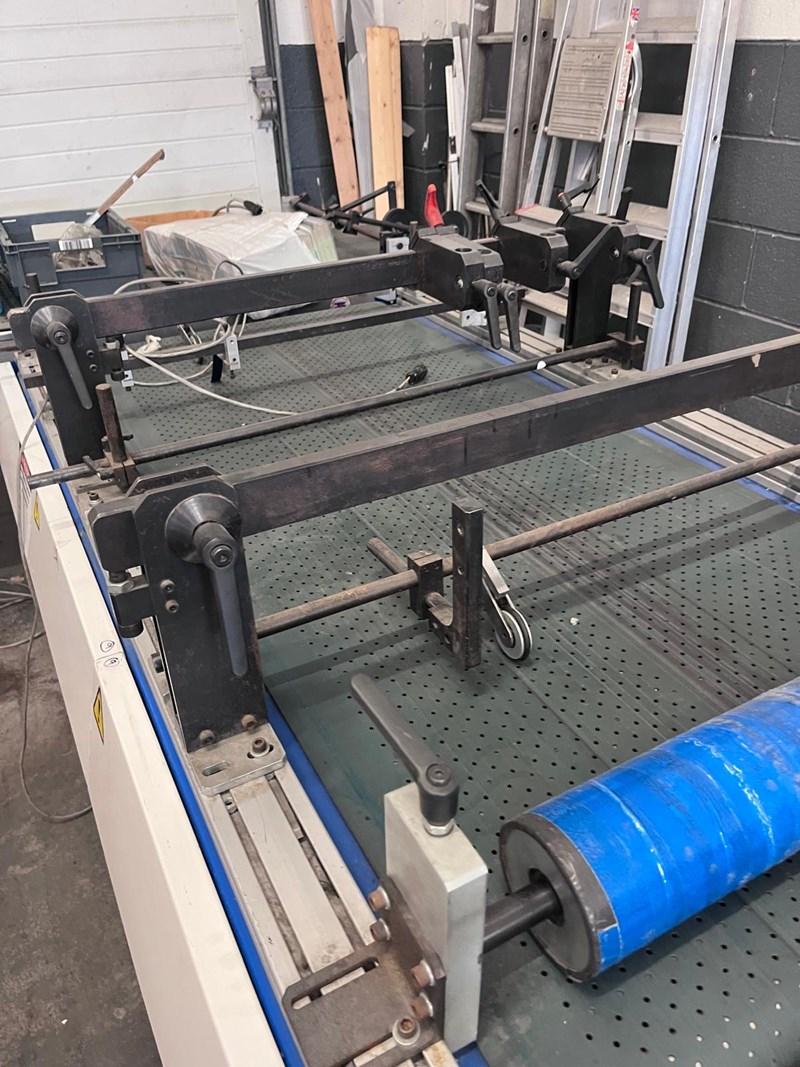

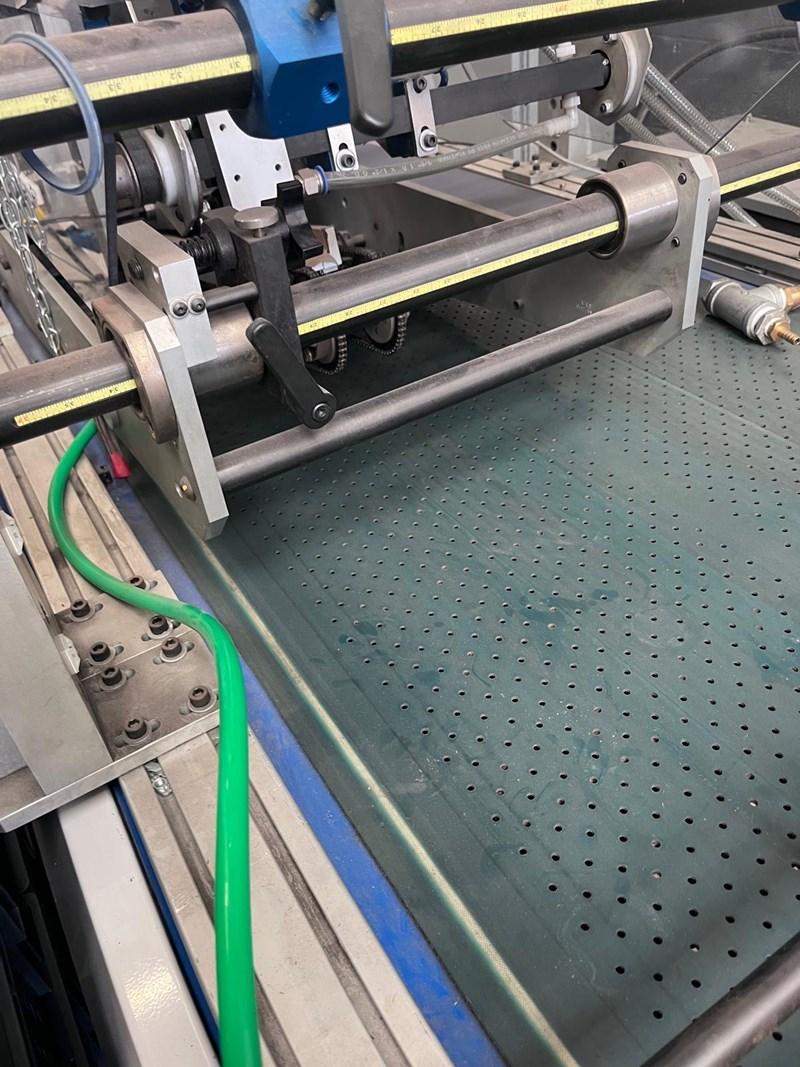

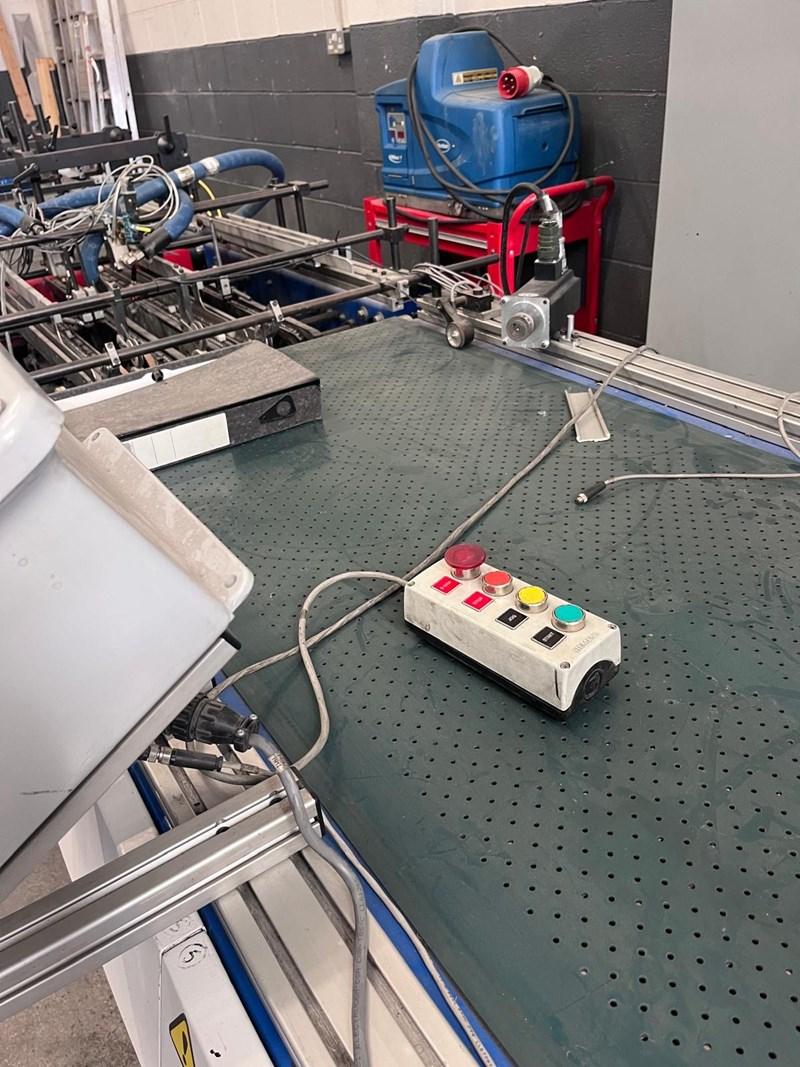

Dual servo-driven vacuum transport conveyors

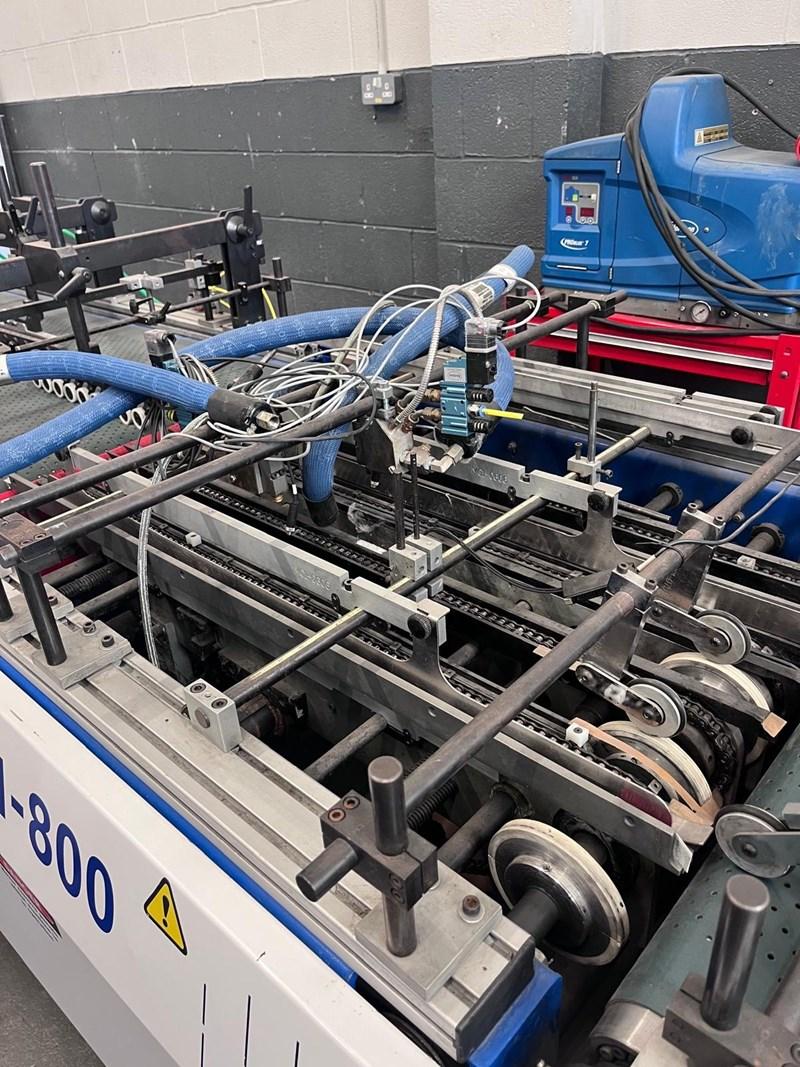

Twin-head hot melt glue system
Servo-driven cold glue pattern system
Scoring / perforating module
Front fold tooling

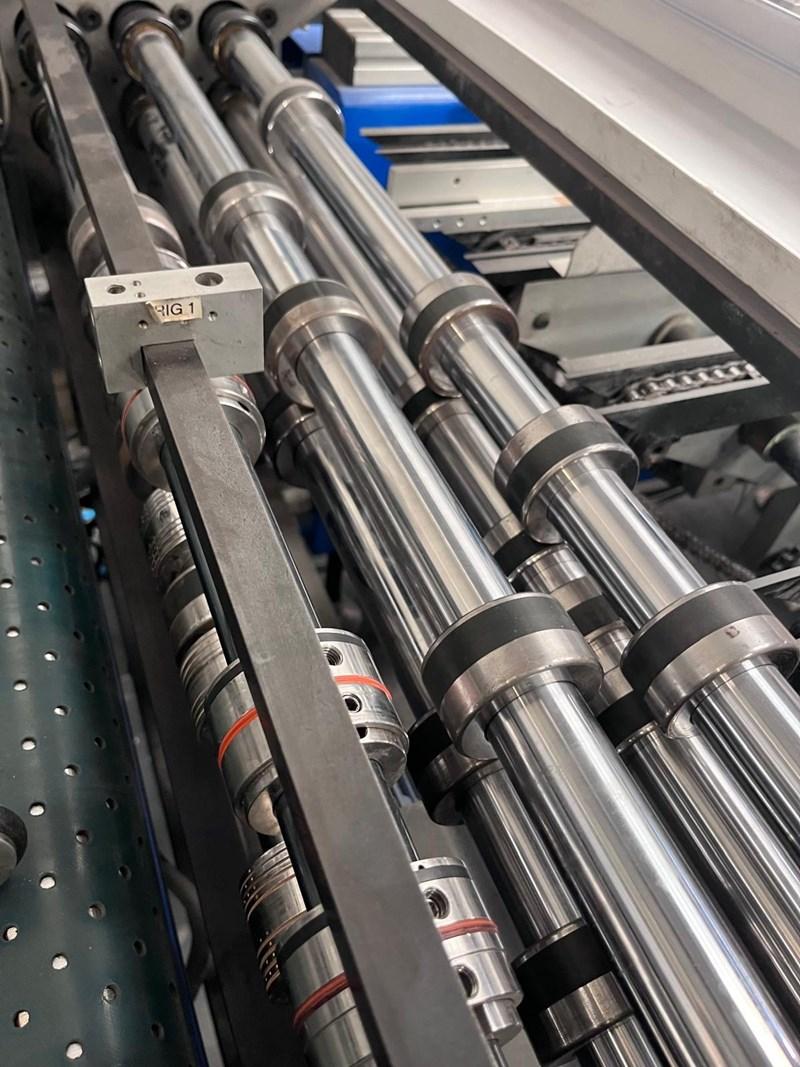

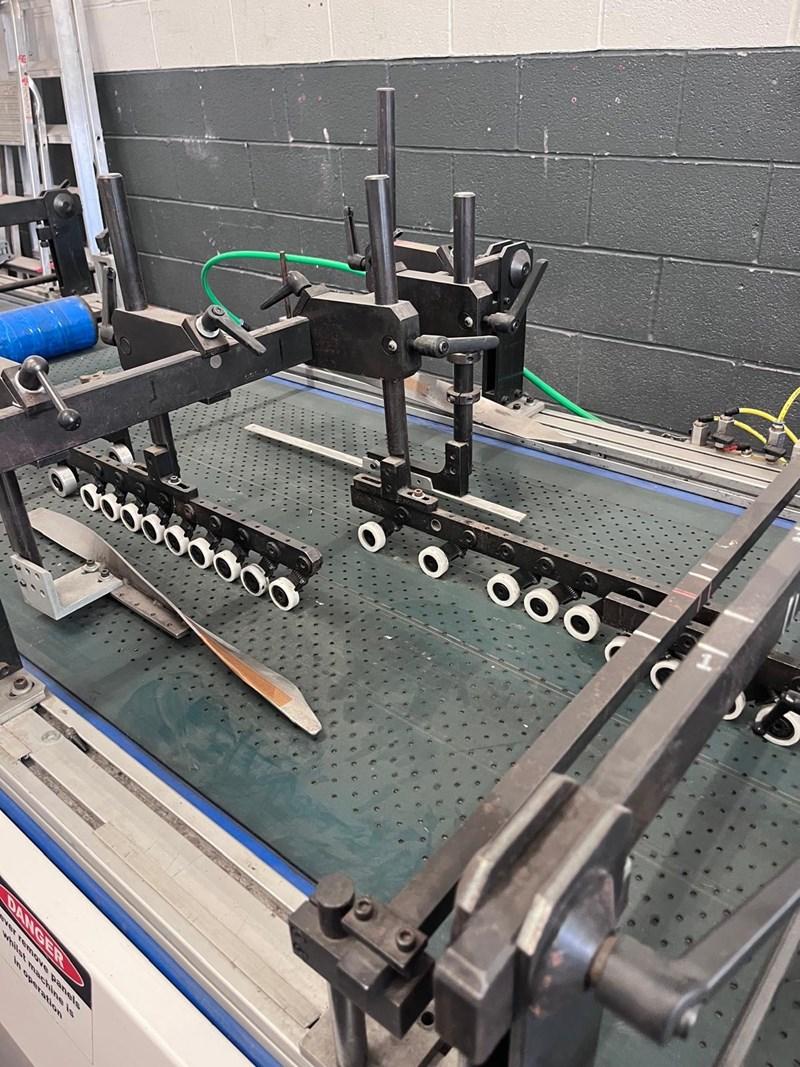

3 x plow fold stations
Turnover / straight-through module
Transfer conveyor

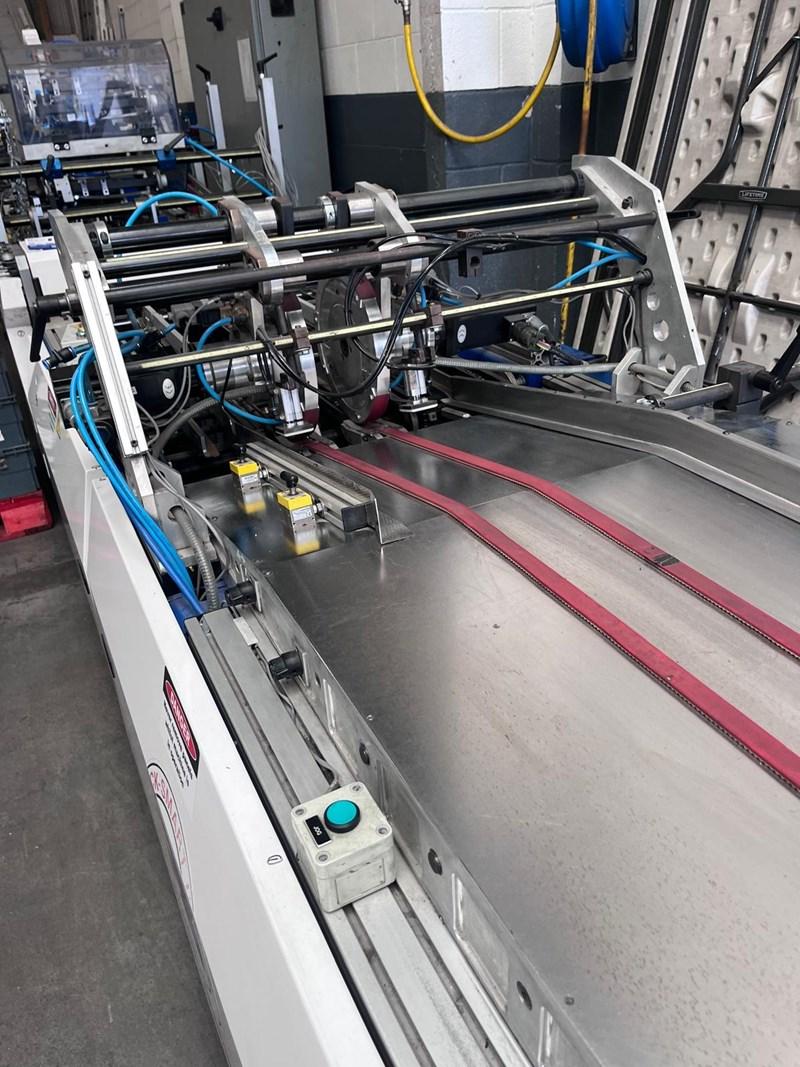

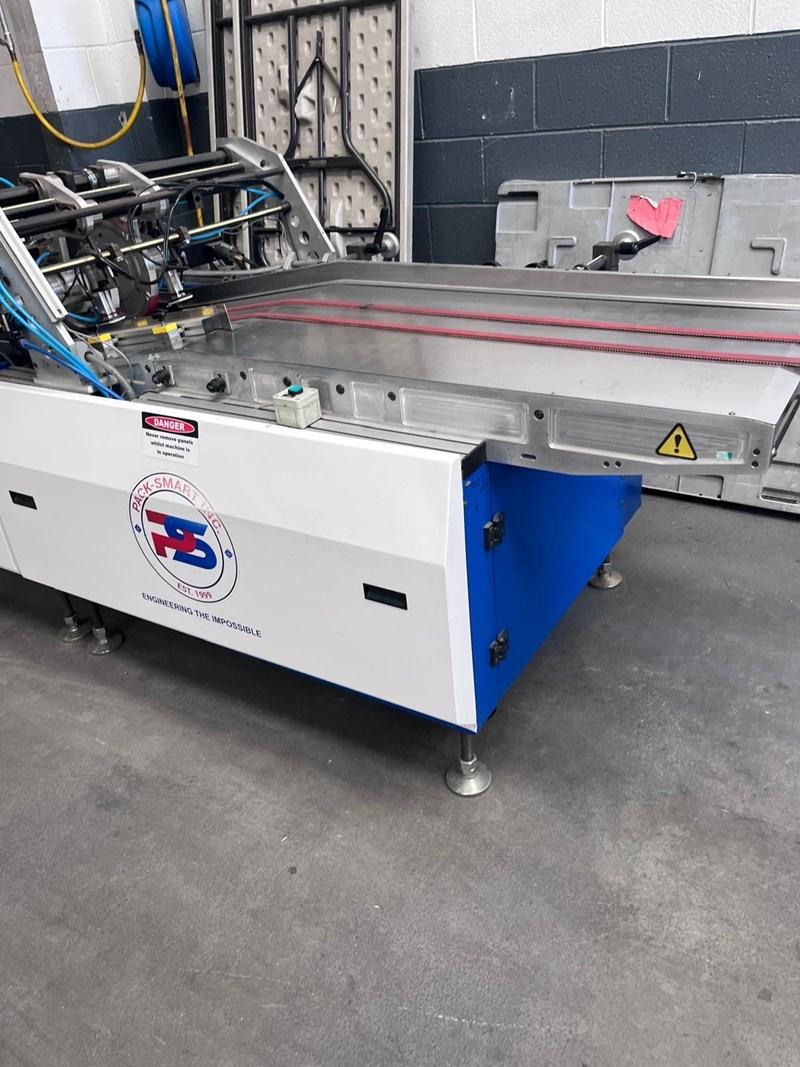

Shingled delivery conveyor
10-axis servo control system

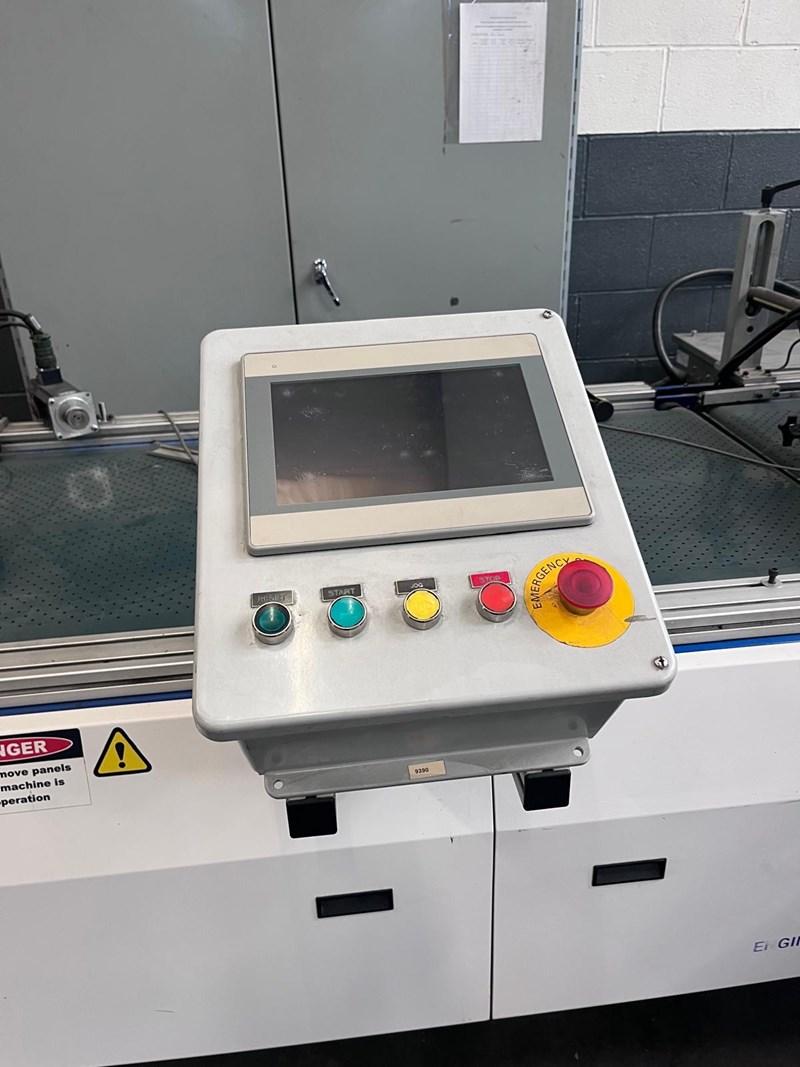

10 colour touchscreen HMI
Recipe storage recall
Integrated vacuum system
Interlocked safety guarding
<strong>Specification:</strong>
Maximum production speed: 12,000 products per hour
Maximum conveyor speed: 122 m/min
Carrier size: 102–762 mm wide x 102–813 mm long
Stock: 145 gsm up to 0.86 mm thickness

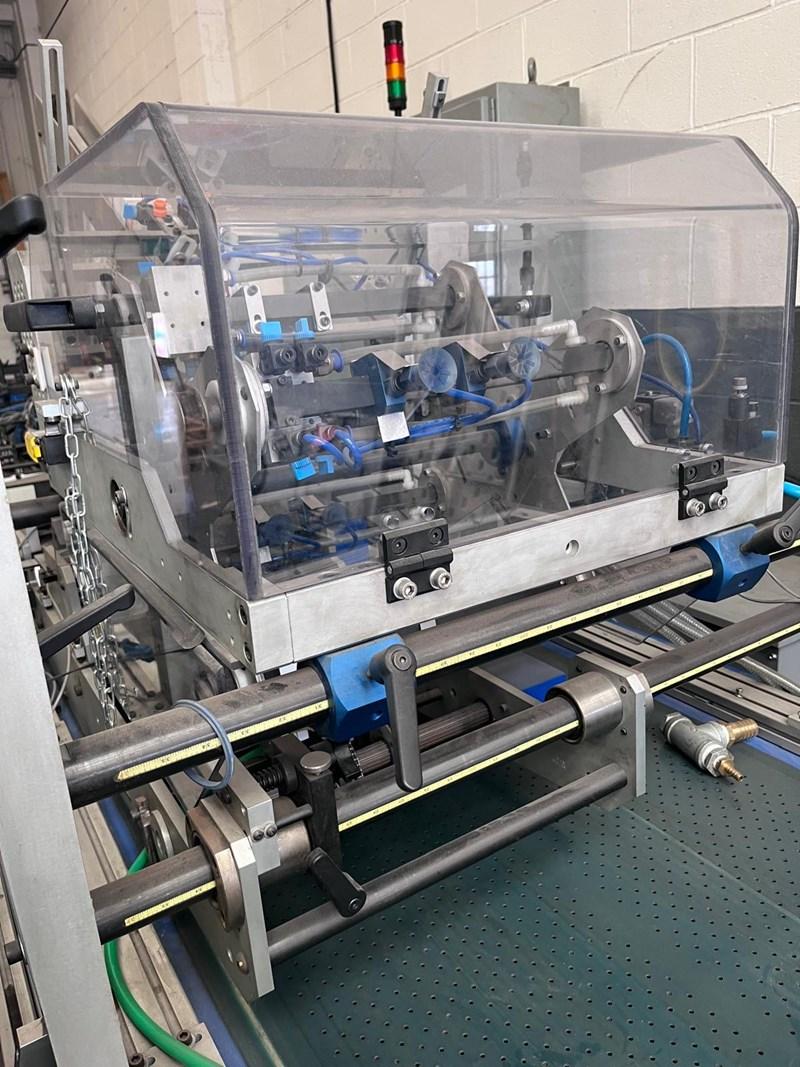

Secondary rotary pick place feeder
Secondary product size: 54 x 54 mm to 150 x 150 mm
Secondary feeder speed: up to 500 products/min
Electrical: 230V / 3Ph
Air requirement: 4.1–7 bar
