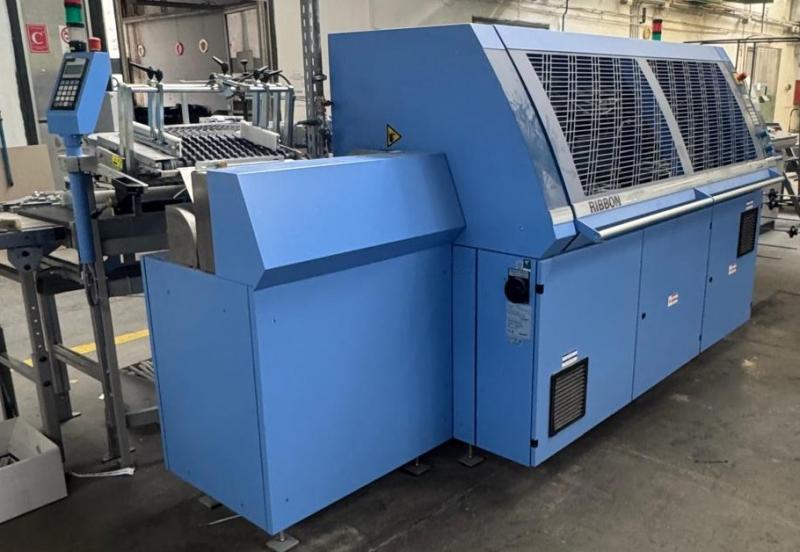

Ribbon inserter

Müller Martini Ribbon A 751

Age 2025

- for inline or offline operation

- State-of-the-art servo technology replaces mechanica! cams and drivetrains

- fully automated with amrys

- operation via 1 HMI operating panel

- runnig left to right

- can be integrated in the Diamant Commander control console

- operation trom the right

Equipment:

- lnfeed element for the mounting of a timed belt trom left or right

- Vertical infeed channel

- Timing of books with light barrier

- Splitting of the book block in two positions via air jet

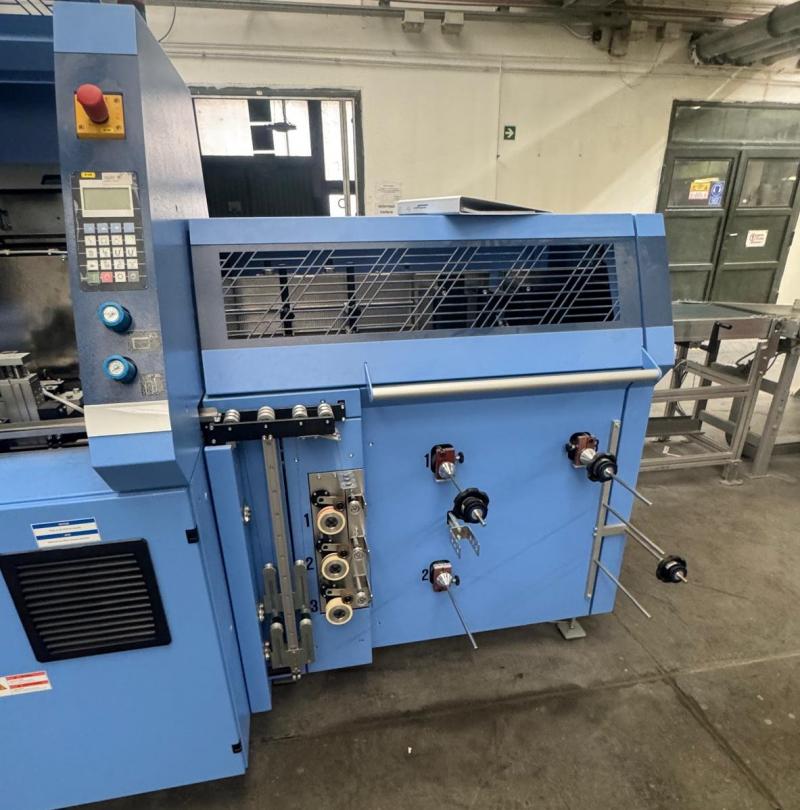

- Ribbon inserting station standard for 1 or 2 ribbons

- Ribbon positioning pull-down device for tight insertion of the ribbon into the spine

- Vertical delivery channel with delivery to the left, horizontal delivery belt

- Surcharge for belt with rolling knife edge for gentle transfer of sensitive products

- Ribbon separation mechanism with heated cutter

- Third ribbon

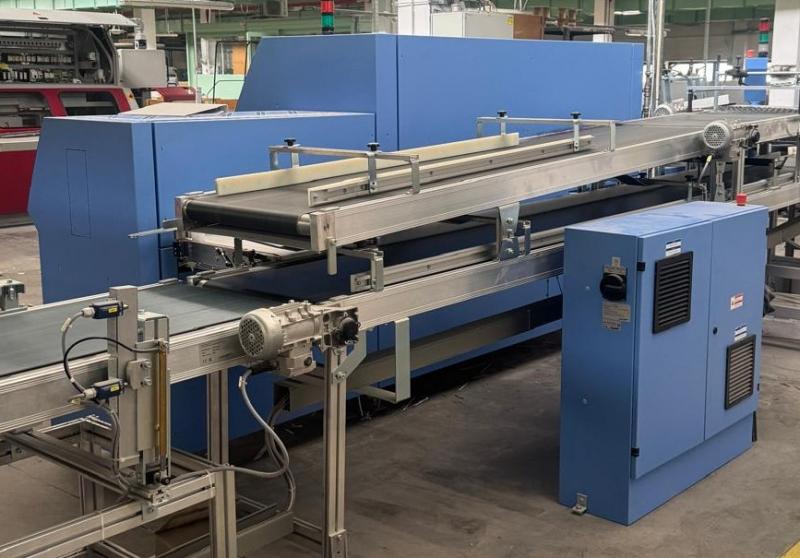

- Conveyor system Ribbon Bypass

General technica! data tor Ribbon: A751.8611

Max. mech. speed 3900 Cycles/h

Size range:

Book Block

-min. WxHxT 70 x 11 0 x 5 mm

-max. WxHxT 300 x 390 x 80 mm

Ribbon

-min. Wxl 3 x 200 mm

-max. Wxl 8 x 530 mm

Size limitations see technica! data

Connection values:

- Electr. requirements: 2 kW

- Compressed air requirements: 18 Nm3/h at 6 bar

- Air requirements: clean and dry

pressure dew point 10°C be low ambient temperature

Net production output depends on paper,

material, size, operator and climate conditions, etc.
