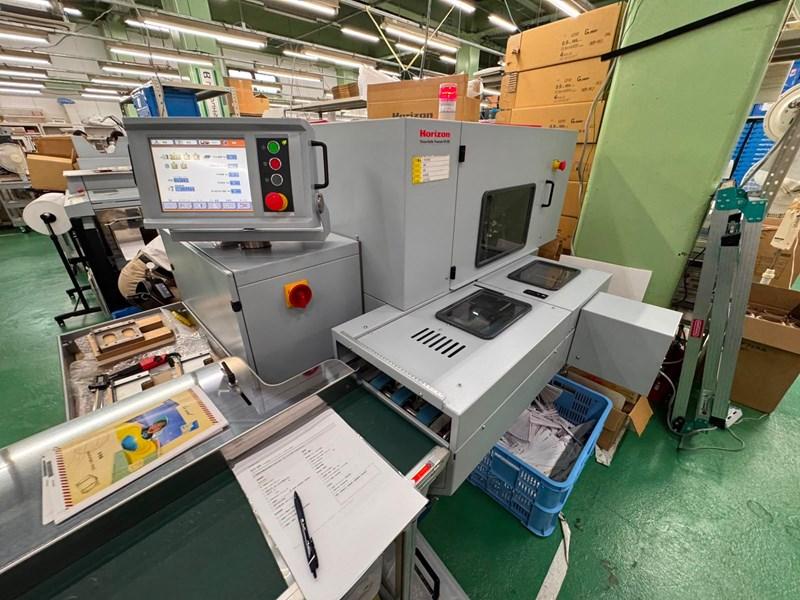

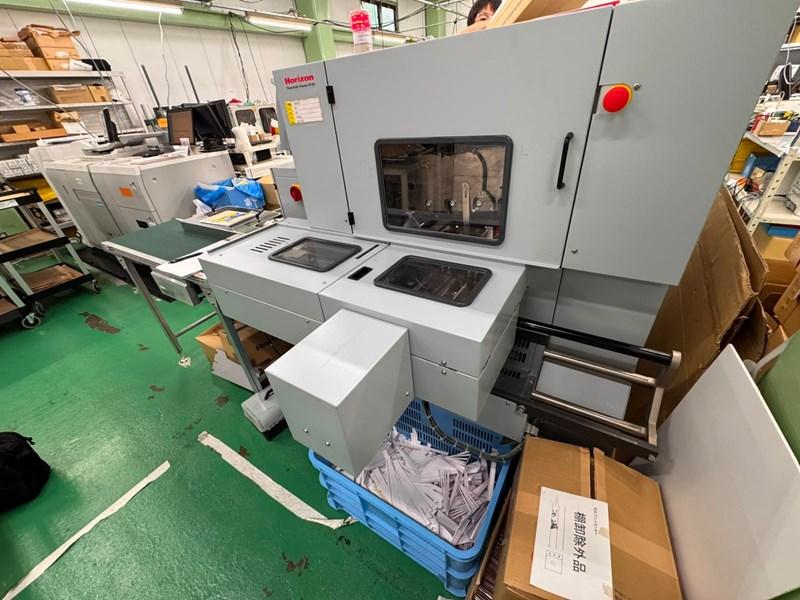

<strong>Ref: 11147 . 2020 Horizon HT-80 Three-Knife Trimmer</strong>
Fully automatic three-knife trimmer designed for short-to-medium-run and digital/book-of-one production.
Can work offline or inline with Horizon binders up to 1,000 cycles/hour, 51 mm book thickness, automatic setup and book-of-one capability
<strong>Features:</strong>

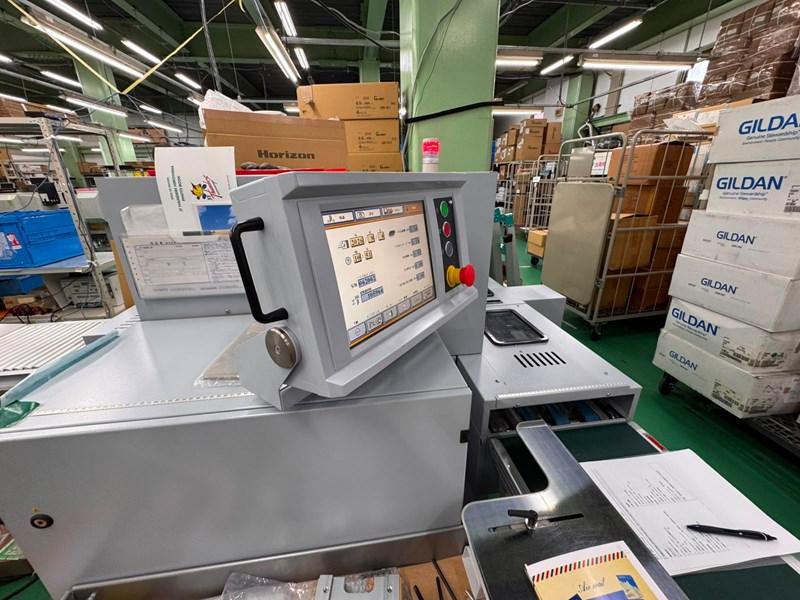

Automatic size setup via colour touchscreen: input the untrimmed and finished book dimensions and the machine automatically positions the relevant sections.
Servo-controlled jogging and clamping provide accurate registration, while the swing-knife cutting action is designed to give a clean three-side trim.
Also capable of book-of-one production.
Books of the same finished size but different thicknesses can be processed consecutively
It can run inline with Horizon BQ-470, SB-07 and SB-09S systems, as well as offline.
<strong>Specification:</strong>
Untrimmed book size – Max. 330 × 330 mm
Untrimmed book size – Min. 145 × 105 mm
Finished book size – Max. 300 × 300 mm
Finished book size – Min. 139 × 99 mm
Book / trim thickness: 1–51 mm
Maximum head foot trim: 30 mm each
Maximum fore-edge trim: 30 mm
Production speed: 400–1,000 cycles/hour
Clamping pressure: 4–8 kN, up to 10 kN depending on conditions
Clamp drive: Servo motor
Standard formats: A4, A5, 8.5 × 11 , 5.5 × 8.5
Job memory: 200 jobs
Dimensions: 1,610 × 2,610 × 1,515 mm W × D × H
Power: 3-phase, 200–230 V, 50/60 Hz; 380/400/415 V versions via transformer
