Year: 2021
Condition: very good
Counter: approx. 3,640,000

Technical Specification:

Min./Max. sheet size: 80 × 100 mm / 360 × 650 mm (optional extended feeder: up to 360 × 850 mm)
Paper weight range: 80–400 g/m²
Programs: 20 programmable jobs
Minimum crease distance: 0.1 mm
Speed: up to 6,000 sheets per hour (A4 with 1 crease)
Power supply: 230 V / 50 Hz single phase
Power consumption: 1.5 kW
Weight: 116 kg
Dimensions: 40 × 65 × 116 cm
Optional accessories: perforation kit; extended feeder


Equipment Description:

The PIT STOP 36 is an automatic creasing and perforating machine with a working width of 36 cm, maintaining all the reliability and precision characteristics typical of machines manufactured by Bacciottini Group.

The standard sheet size is 360 × 650 mm, with an optional extended feeder allowing processing of sheets up to 360 × 850 mm.

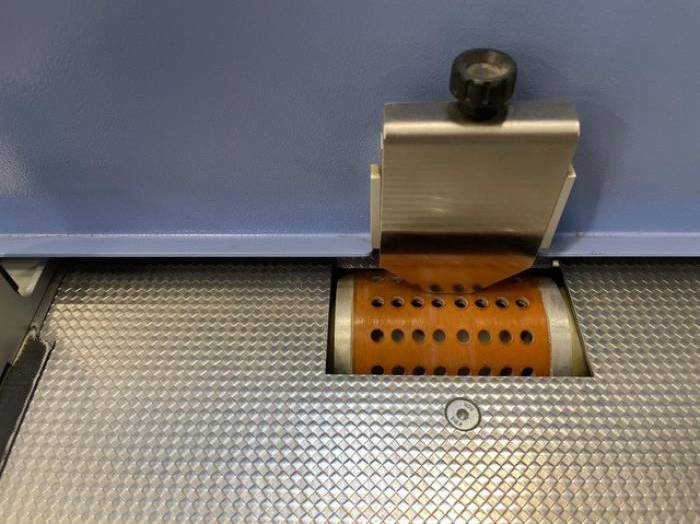

The machine has been specially designed for print-on-demand applications and digital printing workflows. It is equipped with a creasing system using an adhesive matrix.

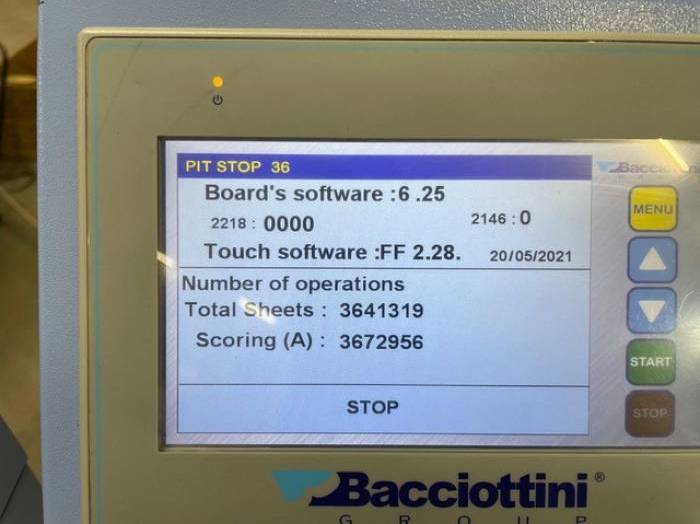

The machine features a user-friendly 7-inch colour touchscreen display, allowing quick and easy setup of all creasing and perforating operations.

The unit is mounted on wheels for easy mobility and helps maximize workspace efficiency, especially in areas where space is limited.
