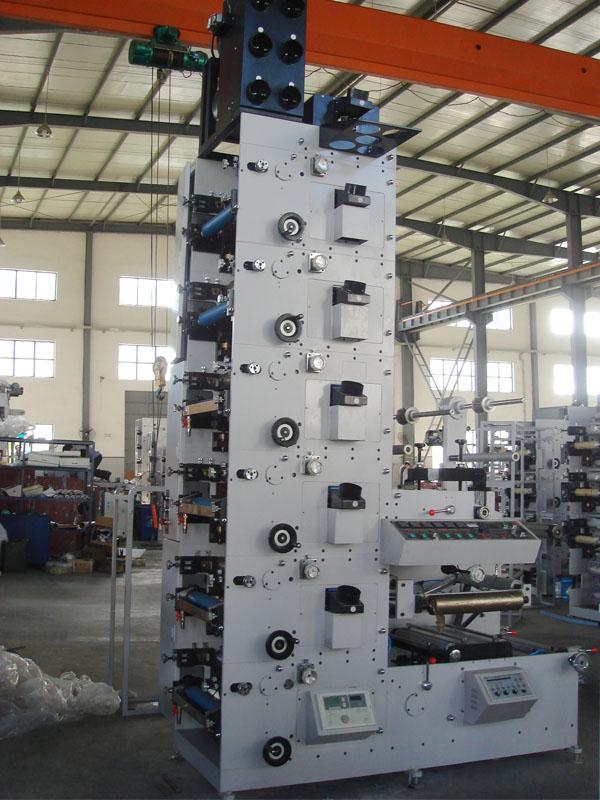

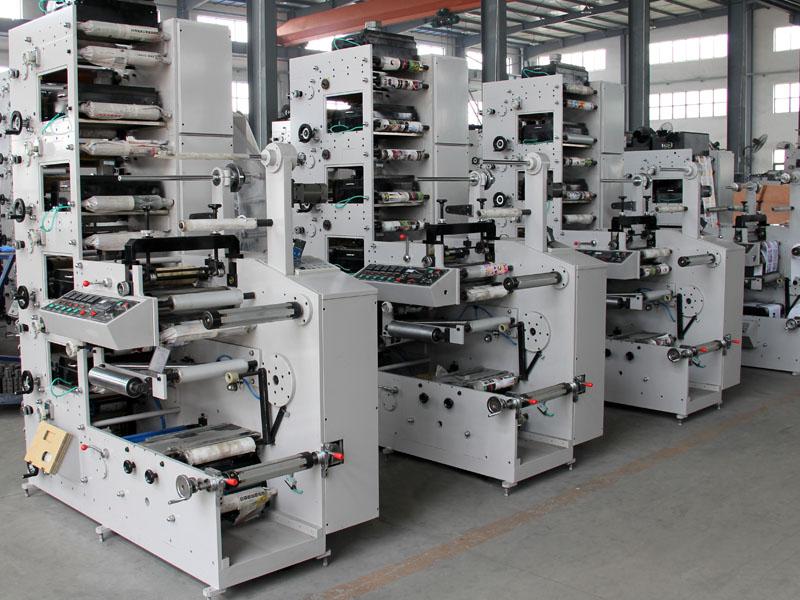

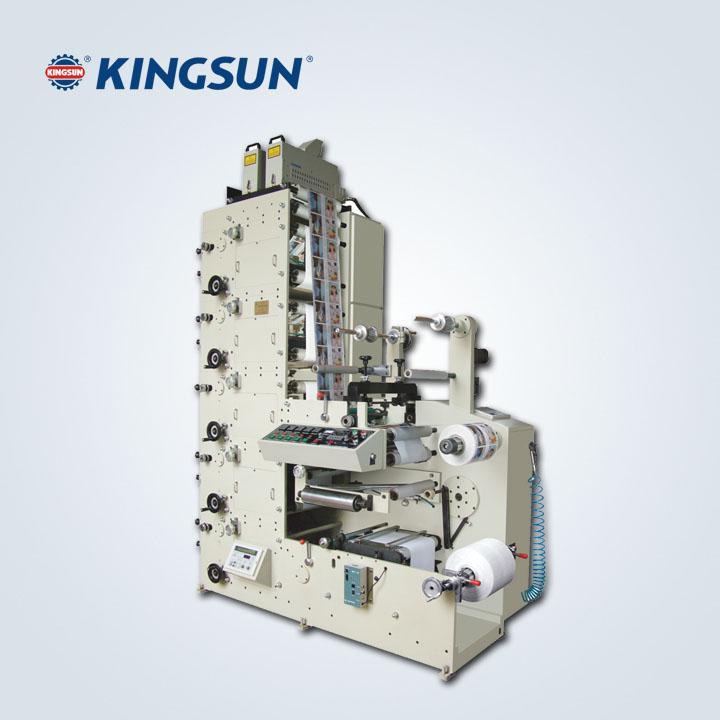

This machine is automatic flexo printing machine with one die-cutting station,which makes printing and die-cutting be finished in one process.It is an ideal machine for printing paper and top-grade adhesive label.

features:
1.Adopt ceramic anilox cylinder to transfer the ink.
2.Unwinding adopts magnetic brake and Mitsubishi tension controller
3.Rewinding adopts magnetic clutch and reliable tension controller
4.Each printing unit adopts 360° plate register adjustment.
5.IR dryer for each printing unit
6.The anilox roller will be seperated with plate roller and still keeping low speed running after machine stopped
7.Imported frequency inverter for speed control

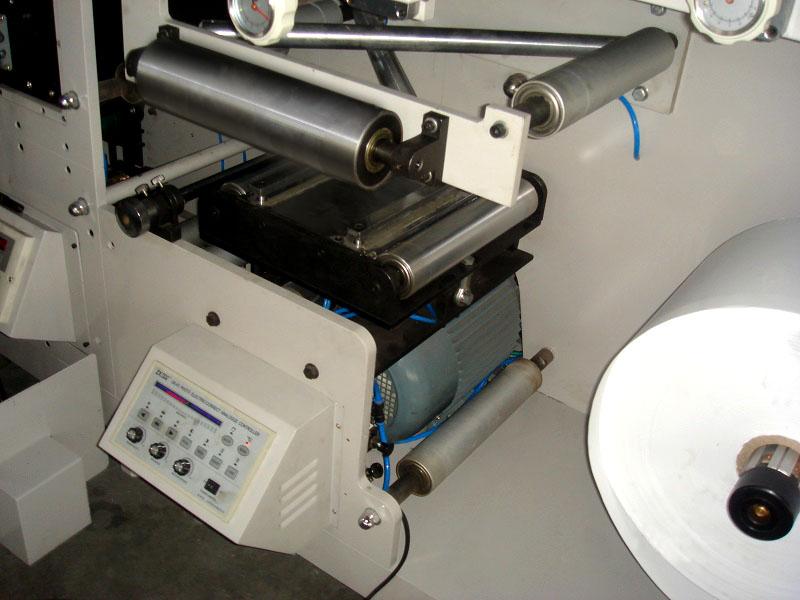

8.With laminating unit and rotary die cutting unit
9.Optional parts:UV dryer,web guide,turn-bar,etc.
10.450mm,500mm,600mm width can be special made

Main technical parameters:

Printing speed: 50m/min
Printing colour：4,5 or 6
Max.web width： 320mm
Max.printing width： 310mm
Max.unwinding diameter： 600mm
Max.rewinding diameter： 600mm
Printing length： 175-355mm
Precision of chromatography： ±0.1mm
Dimensions： 2(L)x1.1(W)x2.6(H)(m)
Machine weight： about2500kg
