HEIDELBERG CD102-5 year 2002

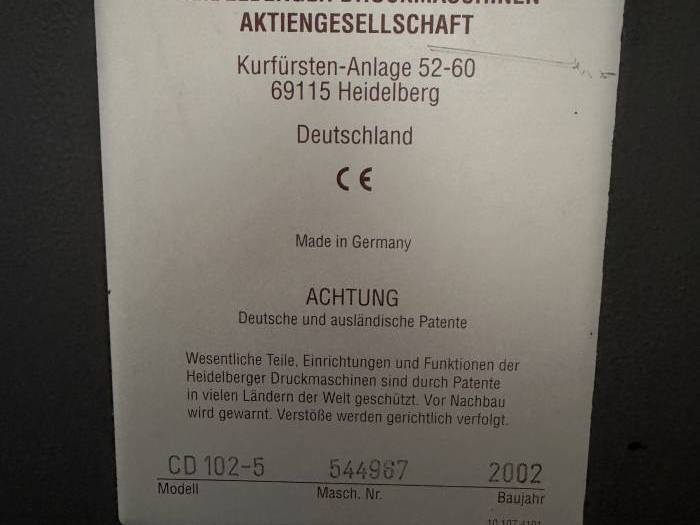

Machine no.544.967
impression count 192mio (The machine was completely rebuilt by a reputable local dealer at 100 million impressions, including the replacement of all grippers.)

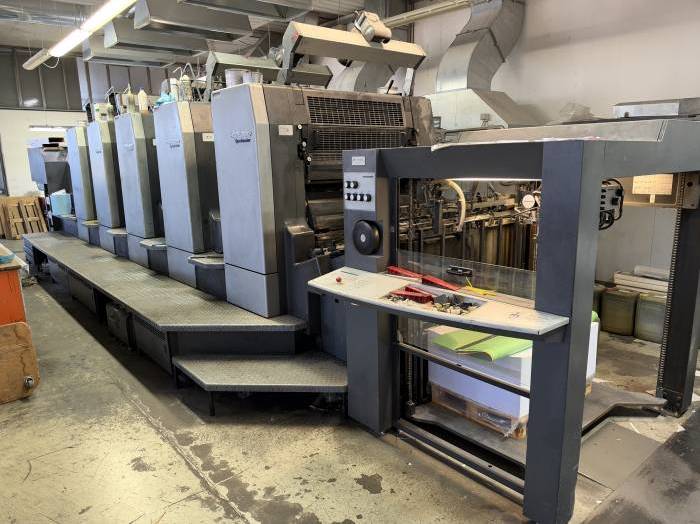

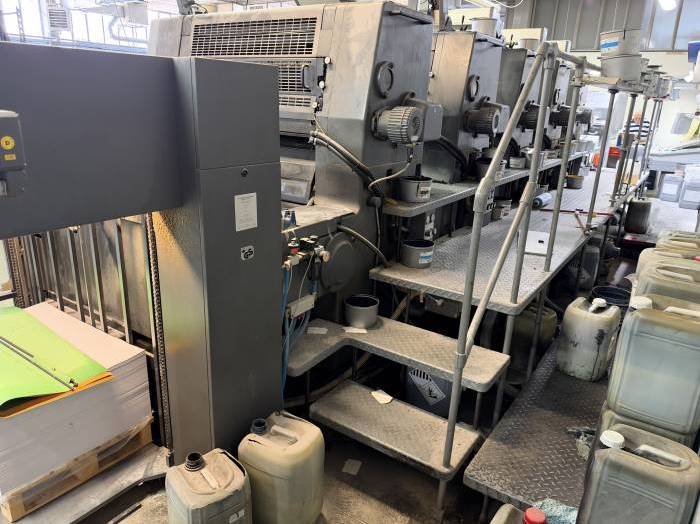

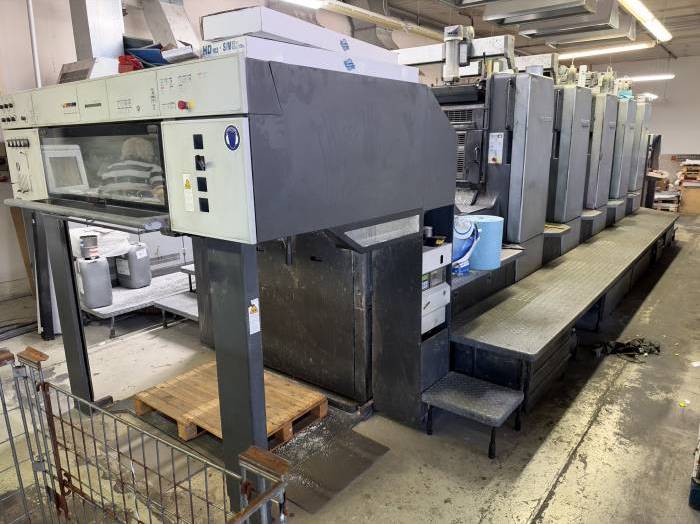

Sheet-fed offset press - Printing units: 5
High pile delivery
Size 28 x 40 inch (720 x 1030 mm)
Technical features:
Speed 15.000 sheet/h
Max paper size 720 x 1020 mm
Min paper size 280 x 420 mm
Thickness 0,08-1 mm
Print area size 700 x 1020 mm
Plate size 790 x 1030 mm Thickness 0,30 mm
Blancket size 1045 x 790 mm Thickness 1,90 mm
Dimensions:
L.11,00 mt.
P. 4,2 mt.
H. 2,2 mt.
Power Kw 00 circa
Weight 00.000 Kg. circa
Accessories included:
- Steel plate on feeder and delivery with ramp (for plastic or wooden pallets)
- Stream feeder with belt
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic

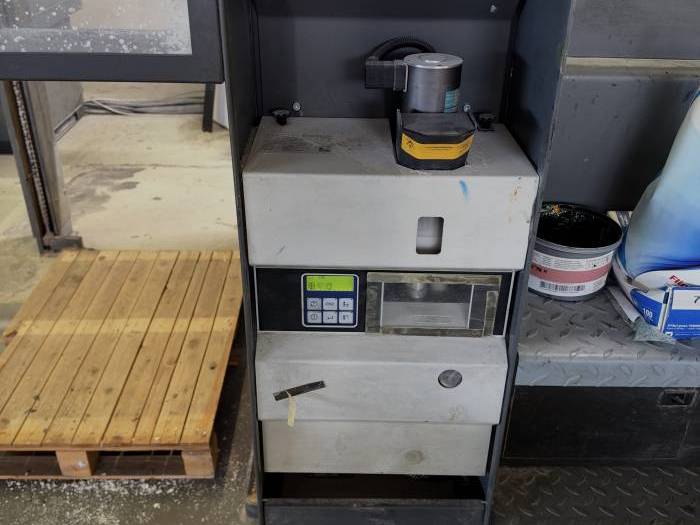

- Alcolor continuous dampening system with Technotrans's alcohol metering; cooling and re-circulation unit system
- Preset (autom. paper size and thickness setting)

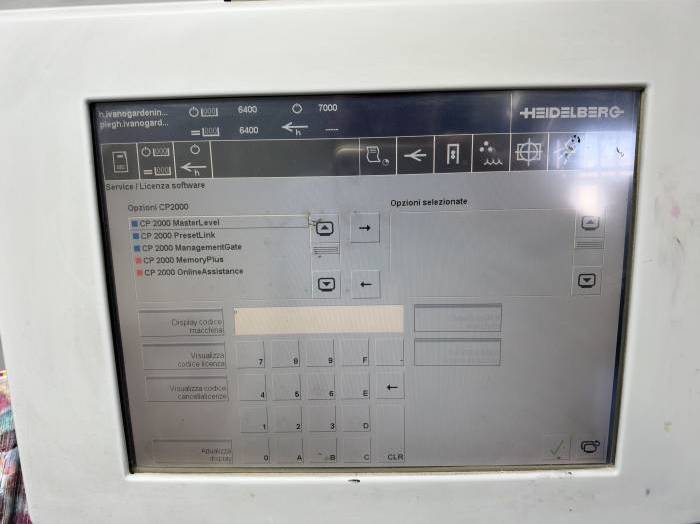

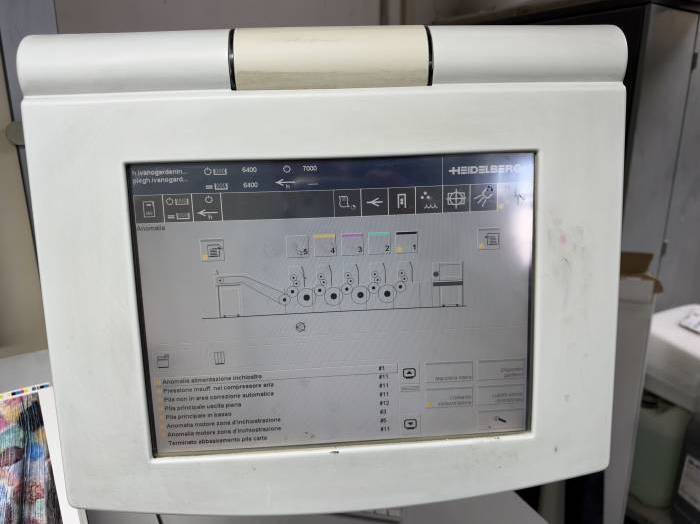

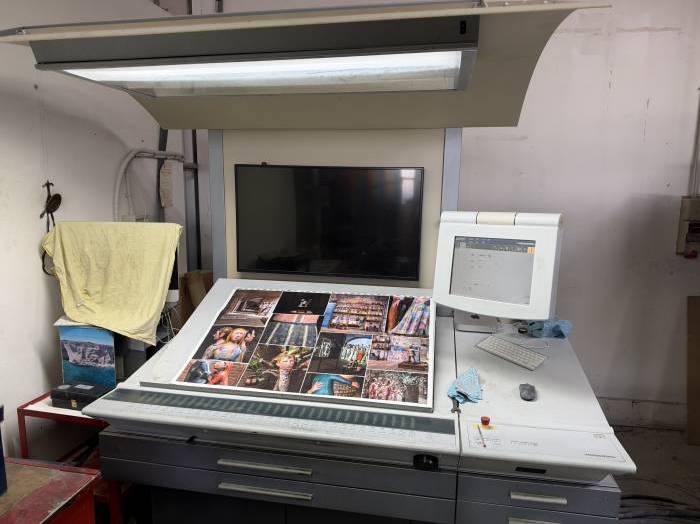

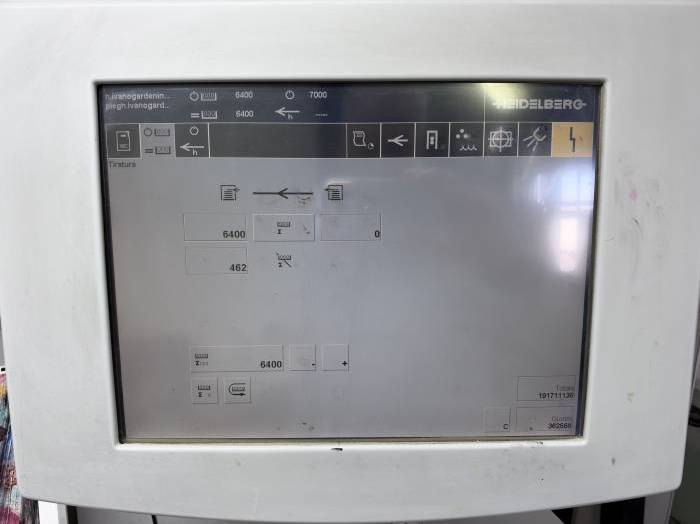

- CP2000 Center with touch screen control and diagnosis; self diagnostic; Remote inking; dampening; axial, circumferential
and diagonal register control with light pen; day light illuminator and cassette or memory card for job memories)
- Programmable automatic blanket cylinders wash up
- Programmable automatic impression cylinders wash up
- Programmable automatic rollers wash up
- Autoplate (semi automatic plate loader) with Bacher Control 2000 register system
- Plate cocking (diagonal register control)
- Ink temperature control system Technotrans (air cooled system)
- Powder sprayer
- IR (Infra red) - Dryer

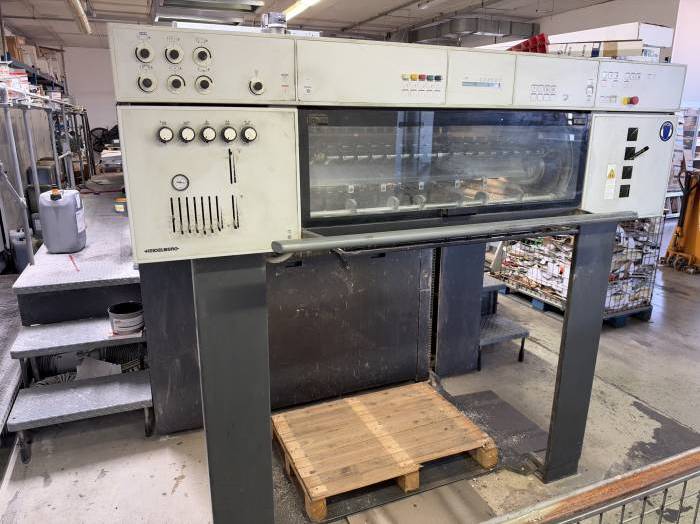

- High pile delivery
- Automatic sheet de-curler
- Oil drip pan, Tools, Documentations
- Complete with all standard parts and accessories

Conditions: Good
Availability: 11/2026
Visible: The machine can be inspected soon in our stock near Milan, North Italy.
