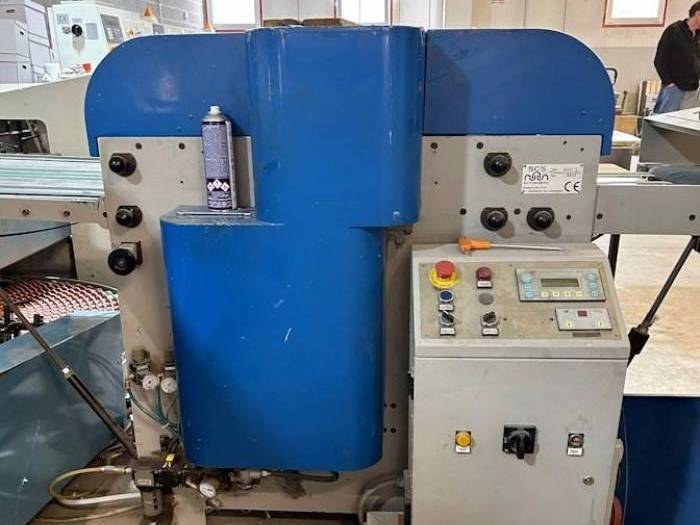

<strong>Ref:10882 . 2006 SCS ‘Easy Trim’ Front Cutting Device.</strong>
For the front foredge cutting of perfect bound and thread sewn soft cover books with upper lower flaps.
Can be integrated in or off-line, and used either before or after the three knife trimmer 4th cut and when not in use
the unit can be simply used as a conveyor.
Very quick size change of approx. 3 mins through simple keying in of book parameters.
Separating of the folded-in covers from the book block without use of vacuum or suckers avoids
any damage or marking of the book.
Front trim using a carbide knife against a plastic cutting stick.
Motorised delivery table.
Single button push transforms the unit into a regular conveyor belt so no divert or extra conveyor necessary.
<strong>Specification:</strong>
Book spine length, Max: 540 mm, Min: 120 mm
Book width trimmed, Max: 350 mm, Min: 100 mm
Book thickness, Max: 60 mm, Min: 5 mm
Off-cut width, Max: 45 mm, Min: 5 mm
Mechanical speed, Max: 4,000 cycles/hr.
Compressed air required : 100 ltr/min.@ 6 bar
