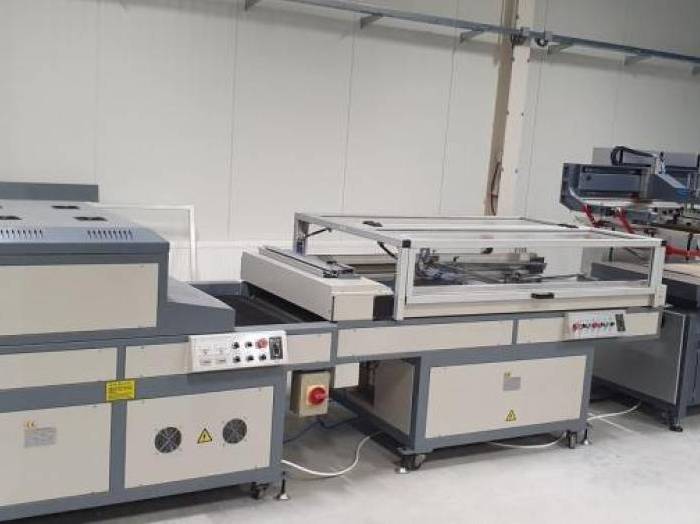

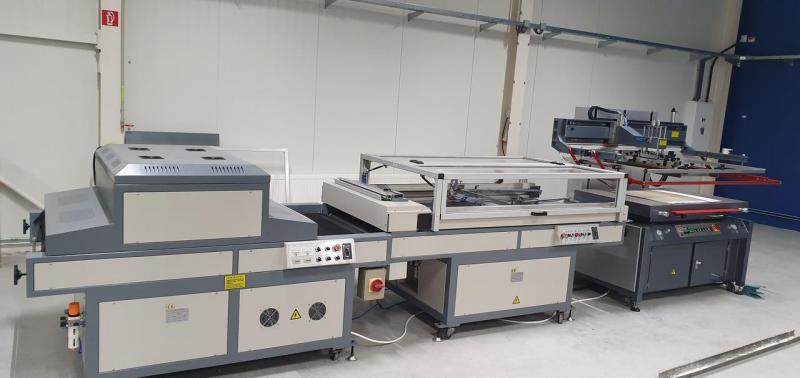

model JB-1280II full line
max printing size 800 x 1200mm
max screen frame size 1100 x 1580mm
table dimension 900 x 1400mm
max printing speed 900 sheets/hour
printing precision ≤ 0.10mm
paper thickness～40mm
instant snap-off height 0～20mm
power supply 380V, 50HZ, 3P, L1, L2, L3, N PE lines
total power 17.69KW
Take off set model JB-900CL
max speed 1200pcs/h
specification of paper 820mm width , 500g
height of suction mouth 900-1000mm
power 220V, 350W
UV Drying Machine - JB-900B
width 900mm
paper for warding speed 0-35m/min
UV power 5.6kw x 2 model JB-1280II full line
