Gallus EM 430 S UV flexographic press designed for the production of high-quality labels and packaging. Machine is fully equipped and configured for production of demanding label applications and applications requiring finishing such as screen printing, hot stamping, or adhesive-side printing.
• 8 UV flexographic printing units,

• adhesive-side printing (Delam/Relam) capability on two printing stations,

• CS/Multiweb lamination unit,

• the ability to replace one flexographic section with a screen printing unit, • Full Cylinder hot stamping unit,

• Corona system for substrate activation,

• Teknek web cleaning system,

• Sensotec automatic register control,

• BST Powerscope video inspection system,

• GapMaster die-cutting unit,

• matrix rewinder,

• UV IST system,

• insetting - web insertion capability




1. Unwinding unit (BG 01) Unwinding unit with pneumatic elevator Web slitting table with pneumatic pressure Dancer system Electric edge guidance with ultrasonic sensor Optical web end sensor 3 pneumatic mandrel Plywood sensor Web break sensor

2. Infeed section (BG 02) Infeed feeding unit mounted on a 610 mm platform Voltage adjustment from 50–1000 N

3. Corona system (BG 57) Corona system 5–10 kV 4 electrodes

4. Web cleaning system (BG 58) TEKNEK system Cleaning of both sides Webs

5. 6 × Standard Flexo Printing Unit

, 2 × Reverse Flexo Printing Unit (double-sided printing)

6. Screen Printing (BG 68 GEN III) 1 × Screen Printing Unit Report Range 12–26

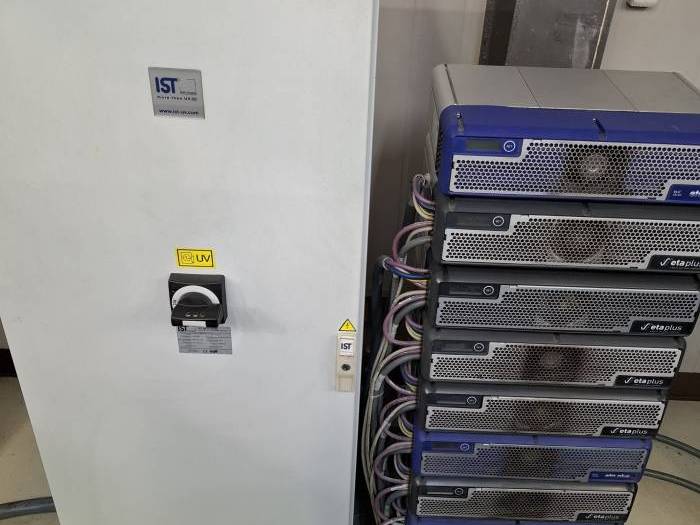

7. UV System (BG 38) 8 × UV Lamp IST MBS 6 Exhaust Fan UV/Corona

8. Hot Foil Stamping (BG 56) Hot Foil Stamping Unit Report 9–21

9. Cold Foil Stamping (BG 78) Cold Foil Stamping Kit

10. Die-cutting section, 1 × 24 GapMaster die-cutting unit t

11. Delivery section BG 10 610 mm platform with double Gearbox BG 07 Outfeed unit with die/machine die

12. Video inspection system (BG 55) BST POWERScope 4000 CCD camera with 12x zoom Strobe lamp 19 monitor 390 mm mounting platform

13. Rewinding section (BG 54) Single-spindle rewinder Integrated elevator Max. roll diameter 1250 mm Banana roller with pressure roller

14. Drive and control BG 09 Drive section with touch panel BG 72 Label counter Software Format correction Additional correction for die-cutters Storage of up to 500 jobs Conversion of inches to mm

15. Cooling 27 kW chiller

16. Automatic register control (BG 27 Sensotec) Web

17. Rail system 14 × starting rails 5 × rails 610 mm 40 × rails 1000 mm

18. Delam / Relam (BG 26) Glue-side printing system (up to 2 colors) Additional guide roller Special roller coating

19. Antistatic (BG 62) Simco control unit 2 × antistatic strips 8 × antistatic brushes

20. Carts Carriage for changing printing units

21. Remote diagnostics Remote control via the Internet HEIRES system

22. Documentation and power supply PL/EN documentation Power supply 400 V Power supply for additional devices 230 V 50 Hz

23. Printing accessories 25 × Anilox, 3 × magnetic cylinders 1x104T, 1x116T, 1x136T, 24 × printing cylinders 8x104T, 8x116T, 8x136T
