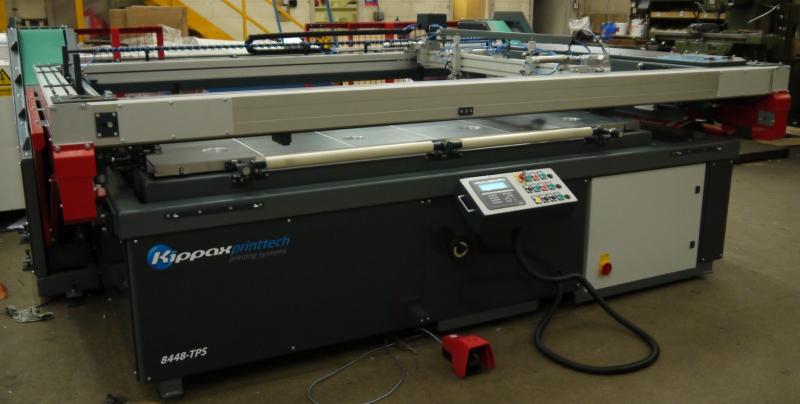

Semi-Automatic Screen Process Printing Machine

Patented Thieme Hi-Tech squeegee system

Front screen loading with pneumatic screen clamping

Movable control panel

Print direction is left to right

12 ball transfer units in the print base

Squeegee rotation option is fitted

Digital display of operation functions

PLC programmable squeegee speed and stroke length

Adjustable printing base for snap-off distance 0 – 2.75 0 - 70 mm start position and amount of peel-off

Foot pedal start for air flotation

Ink reclaim systems, when the squeegee travels an additional 2 50 mm every 4th print to reclaim ink at the rear of the screen

Squeegee set up position where both the squeegee and coater remain in the up position

PLC memory save and recall system

Air flotation on print base

12 Rise and-fall ball transfer system for glass printing

Pneumatic squeegee beam 90° turnover

PLC print pressure control:

2 off movable front loading rollers
Vacuum on print base
48 additional air flotation holes as per drawing

Maximum print area: 2150 x 1250 mm

Maximum frame size: 2750 x 1750 mm
