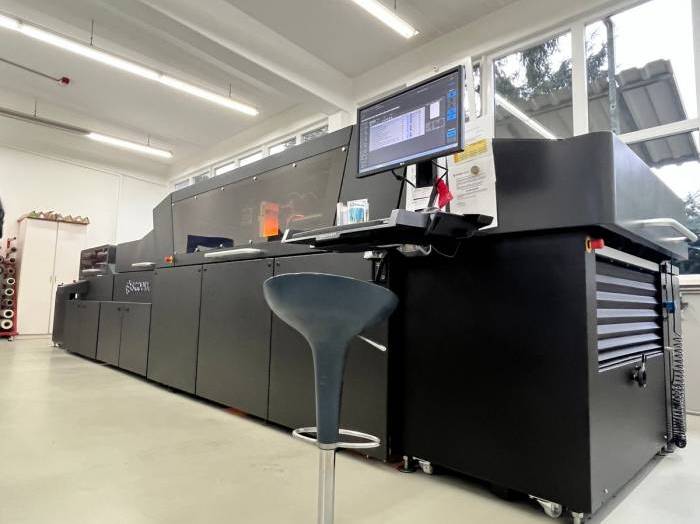

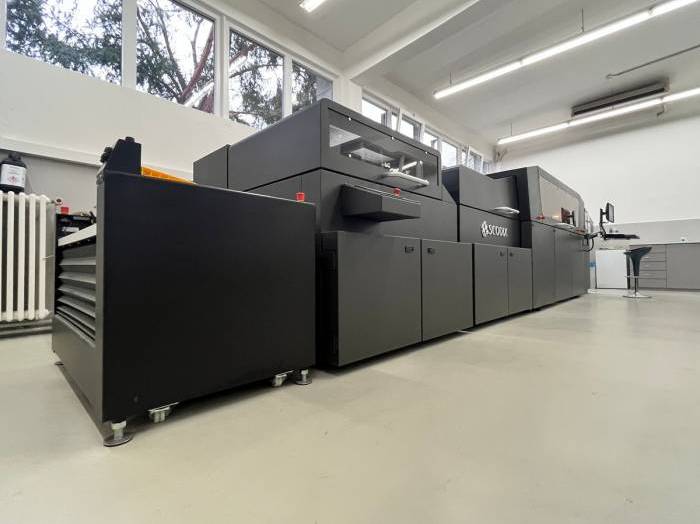

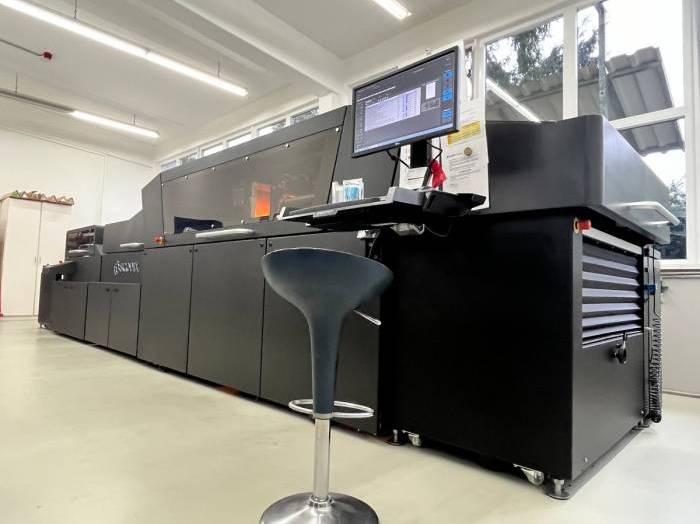

SCODIX ULTRA 202

Year 2019

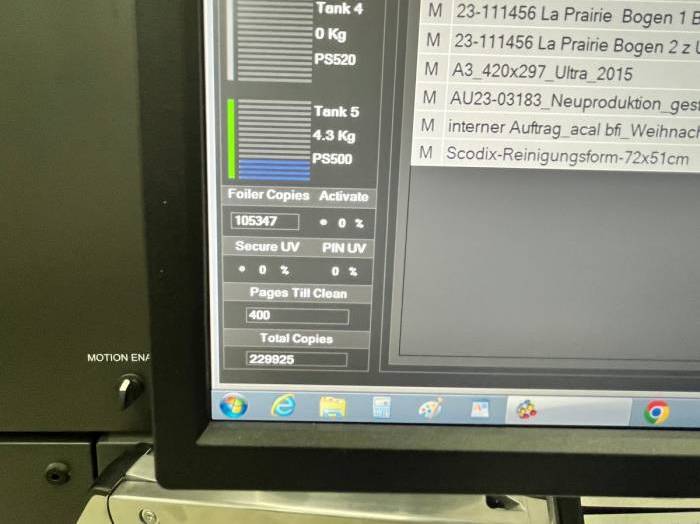

Printing counter: only  230.000 copies

Paper size Min: 29 x 42 cm
Paper size Max: 54 x 78 cm
Printing size Max: 74 x 50 cm

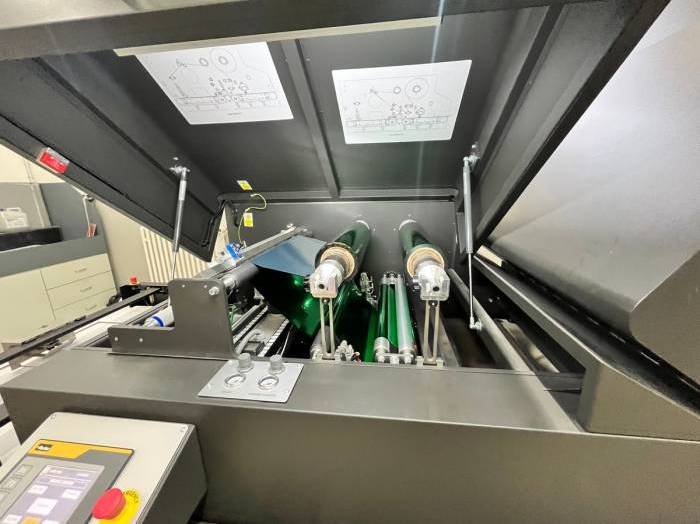

Foil technology

Digital in-line with Scodix PAS  foil technology

Foil roll width (min/max)

50-500 mm/1.97-19.68 in

Foil roll size

Diameter:max 30 cm; Length:max 2,000 m; Core:77mm/3 in

Max number of simultaneous rolls

Up to 4 rolls

Polymer layer thickness

From 5 up to 250 microns

Substrate weight

135-675 gsm/6-30 points

Substrate thickness

Up to 700 microns

Foil film type

Wide variety of industry standard hot/cold foil films

Substrates

Offset, Plastics, laminated and coated/uncoated substrates

Resolution

Up to 2540 x 450 DPI

Variable Data Enhancement (VDE)

PDF, optimized PDF, barcode system (optional)

Scodix RSP™ Technology

4 CCD camera system, RSP™ (Rotate, Scale, Position) algorithm, automatic positioning, ± 100 micron image to image registration

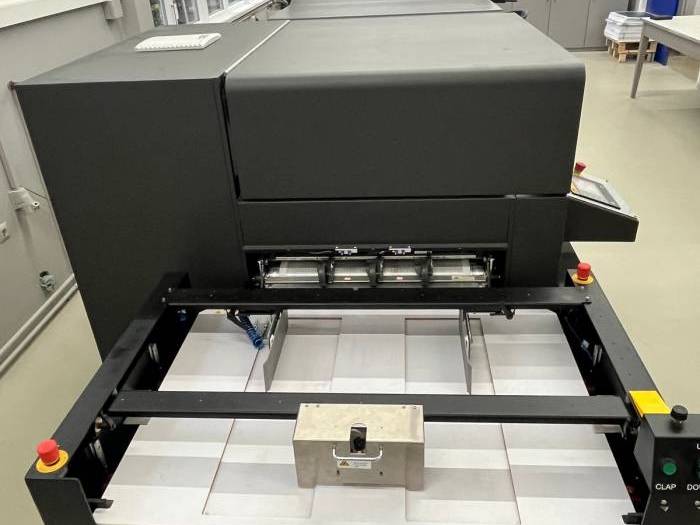

Substrate loading sizes

Min – L297 x W420 mm / 11.7 x 16.5 in                    Max – L545 x W788 mm / 21.5 x 31 in

Printing image sizes

Max – L748 x W504 mm / 29.4 x 19.9 in

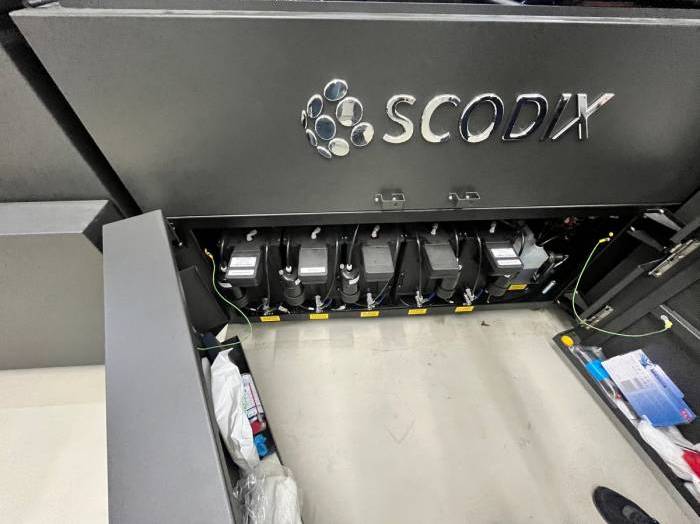

Polymer tank system

4 polymer tanks

Press dimensions (L x H x W)

7880 x 1790 x 1979 mm / 310.2 x 70.4 x 77.9 in

Press weight (net)

5300 kg / 11684 lbs.
